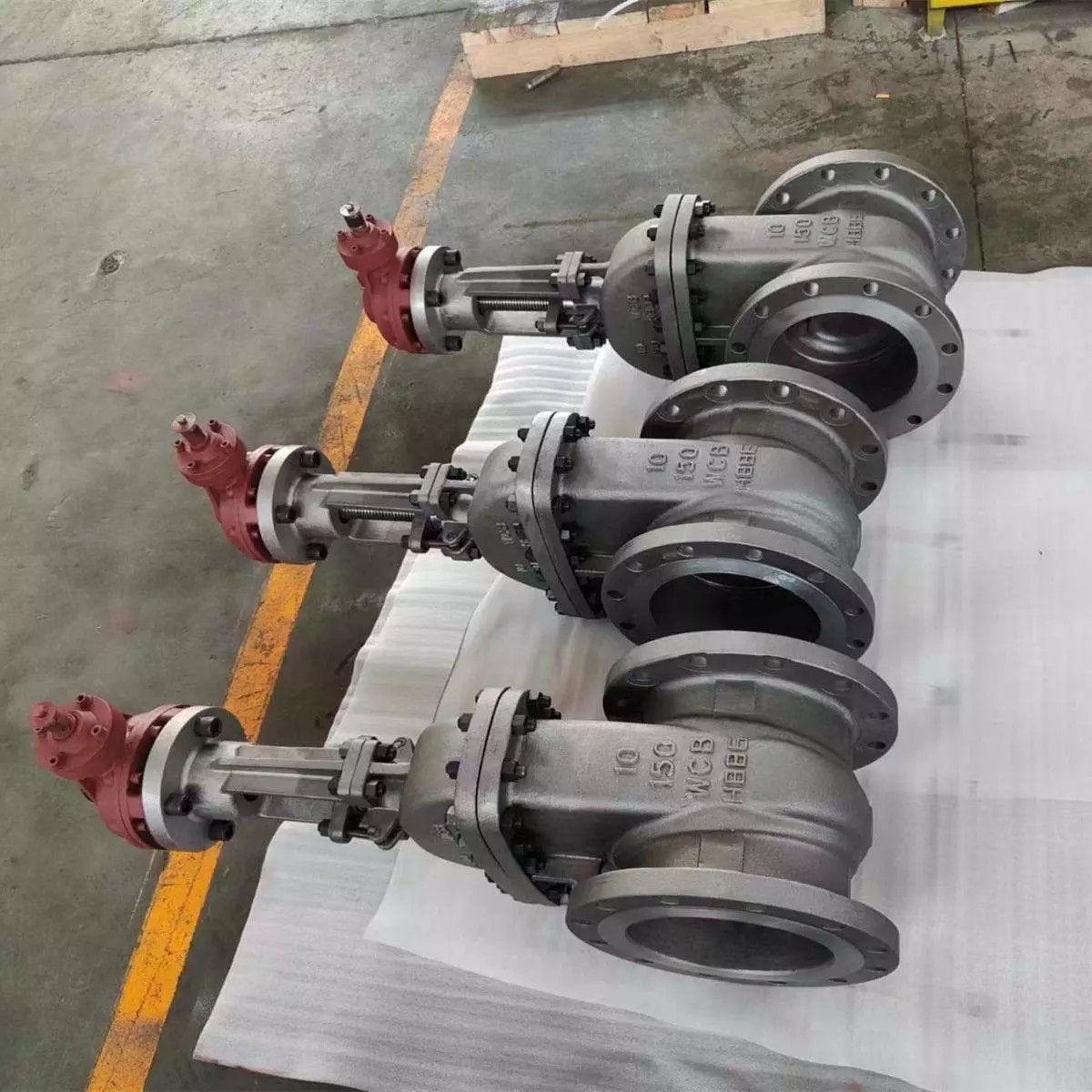

API 600 Gate Valve, ASTM A216 WCB, 10 Inch, Class 150 LB, RF
Key Specifications / Features
Model No.: WV-231228-AGV-12 Hits: 105
Introducing our renowned API 600 Gate Valve, meticulously fabricated by our esteemed facility. Crafted from high-quality ASTM A216 WCB material, this 10-inch gate valve conforms to the stringent standards of API 600. With a Class 150 LB rating and DN250 specifications, our gate valve is designed for optimal performance in various applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 600.
Body: ASTM A216 WCB
Nominal size: 10 INCH.
Nominal class: 150 LB.
End Connection: Raised flange.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: 10 INCH.
Nominal class: 150 LB.
End Connection: Raised flange.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 600. |
| Face to face | ASME B16.10. |
| OPERATION | GEAR |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
