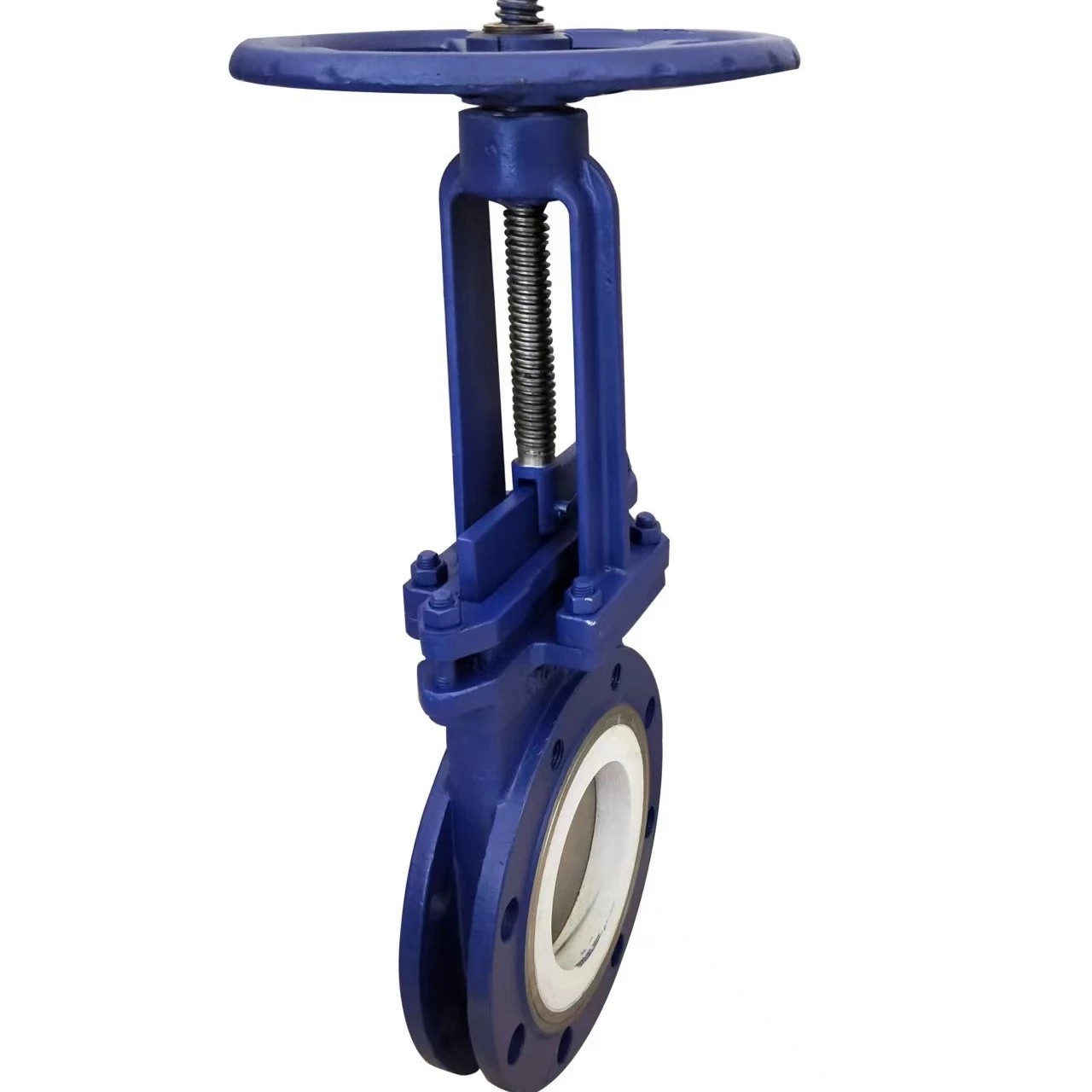

Ceramic Lined Knife Gate Valve, ASME B16.34, 3 Inch, 150 LB
Key Specifications / Features
Model No.: WV-240109-CLV-06 Hits: 46
Welcome to our advanced Ceramic Lined Knife Gate Valve Plant, proudly based in China, where cutting-edge technology meets precision engineering. Our valve, meticulously designed with a 3-inch size, Class 150 LB rating, and adherence to API 6D and ASME B16.34 standards, ensures exceptional performance in diverse applications. Crafted from high-quality ASTM A216 WCB material, it guarantees durability and resilience.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Ceramic lined knife gate valve, bolted bonnet, raised flanged.
Design: API 6D, API 600, ASME B16.34, GB/T 12237.
Body: ASTM A216 WCB
Nominal size: DN80.
Nominal class: PN10.
End Connection: RF flange.
Face to face: ASME B16.10, GB/T 12221.
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 16 Inch (DN50 - DN400).
End connection: Flanged.
Pressure range: Class 150 - 600 LB.
Working temperature: -29℃ - +150℃.
Technical parameters and characteristics
Design: API 6D, API 600, ASME B16.34, GB/T 12237.
Body: ASTM A216 WCB
Nominal size: DN80.
Nominal class: PN10.
End Connection: RF flange.
Face to face: ASME B16.10, GB/T 12221.
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 16 Inch (DN50 - DN400).
End connection: Flanged.
Pressure range: Class 150 - 600 LB.
Working temperature: -29℃ - +150℃.
Technical parameters and characteristics
| Product | Ceramic knife gate valve. |
| Nominal diameter | 2 Inch - 20 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 600 LB. |
| Material | Carbon steel. |
| Design standard | API 6D, API 600, ASME 16.34, GB/T12237. |
| Face to face | ASME B16.10, GB/T 12221. |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | With cinder, gray dreg, etc being angry firm to mix medium. |
| Model | PZ73TC |
