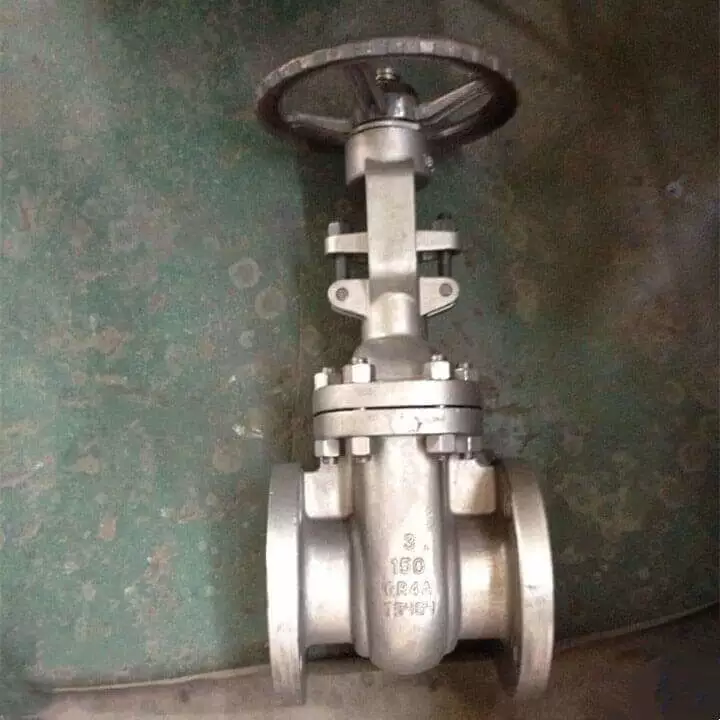

API 600 Gate Valve, ASTM A890 4A, 3 Inch, Class 150 LB, RF
Key Specifications / Features
Model No.: WV-231219-AGV-08 Hits: 29
Are you looking for a reliable Duplex Stainless Steel Gate Valve supplier? Look no further. We provide top-quality valves crafted from ASTM A890 Grade 4A material. Our 3-inch valves, suitable for DN80 applications, are designed for Class 150 LB and PN20, ensuring superior performance. Compliant with API 600 standards, these gate valves feature a Raised Flange End and a Bolted Bonnet for enhanced durability and secure connections.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Gate valve, bolted bonnet, Raised flange.Design: API 600.
Body: ASTM A890 Grade 4A
Nominal size: 3 Inch.
Nominal class: 150 LB.
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Duplex Stainless Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Duplex steel. |
| Design standard | API 600. |
| Face to face | ASME B16.10. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
| Special test | Impact test. |
