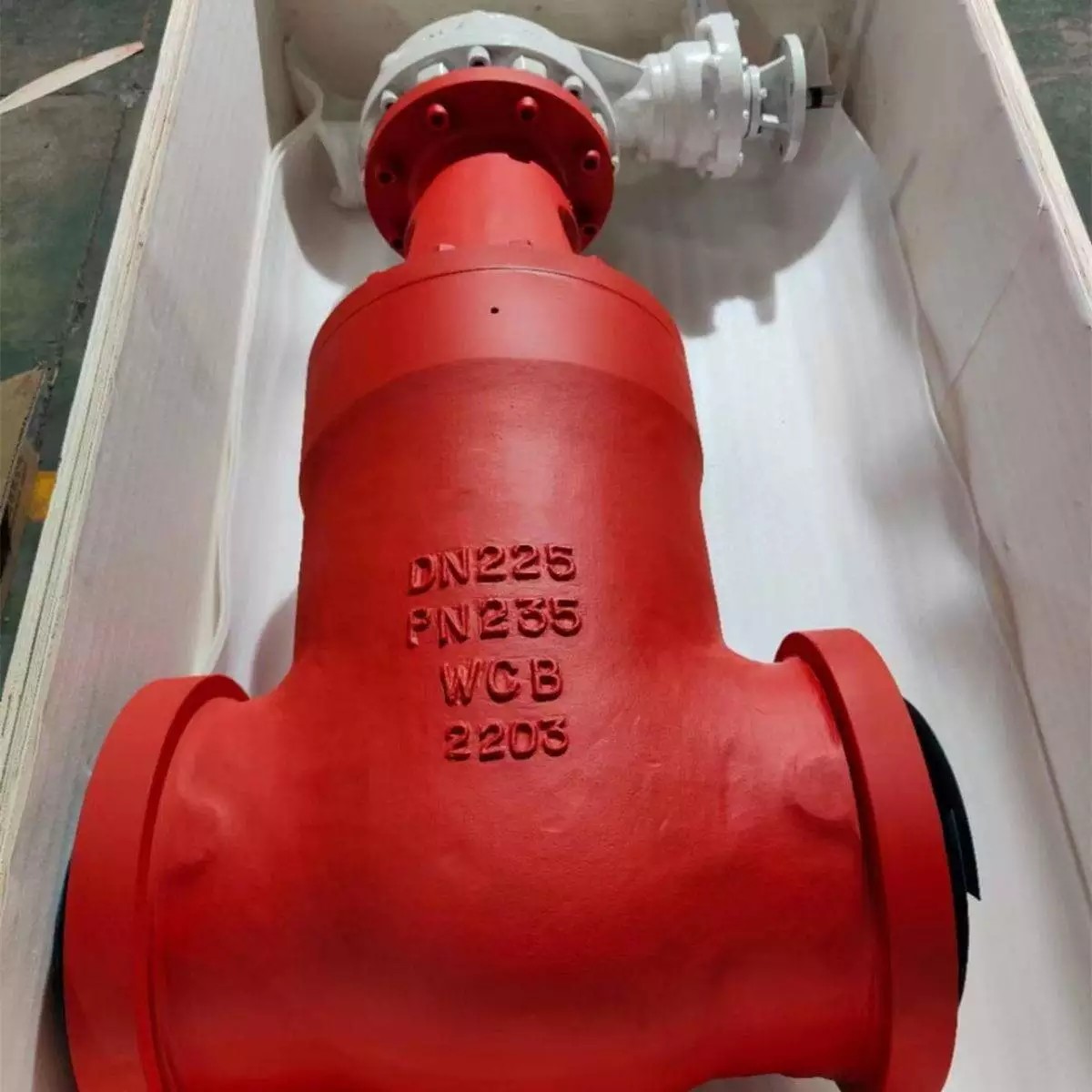

BS EN 1984 Gate Valve, ASTM A216 WCB, DN225, PN235, BW End
Key Specifications / Features
Model No.: WV-231228-AGV-13 Hits: 40
As a leading BS EN 1984 Gate Valve Factory in China, we take pride in presenting our exceptional gate valve crafted with precision. Manufactured from high-quality Carbon Steel ASTM A216 WCB, this valve adheres to the BS EN 1984 standard. With a DN225 size and PN235 rating, our gate valve is engineered for optimal performance in diverse applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: BS EN 1984.
Body: ASTM A216 WCB
Nominal size: DN 225.
Nominal class: PN235.
End Connection: Butt weld.
Face to face: BS EN1092-1.
Test and inspection: BS EN 12266.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: DN 225.
Nominal class: PN235.
End Connection: Butt weld.
Face to face: BS EN1092-1.
Test and inspection: BS EN 12266.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | BS EN 1984. |
| Face to face | BS EN1092-1. |
| OPERATION | GEAR |
| Connection end | BW, Flange. |
| Test standard | BS EN12266. |
| Package | Plywood |
| Application | The oil and gas industry |
