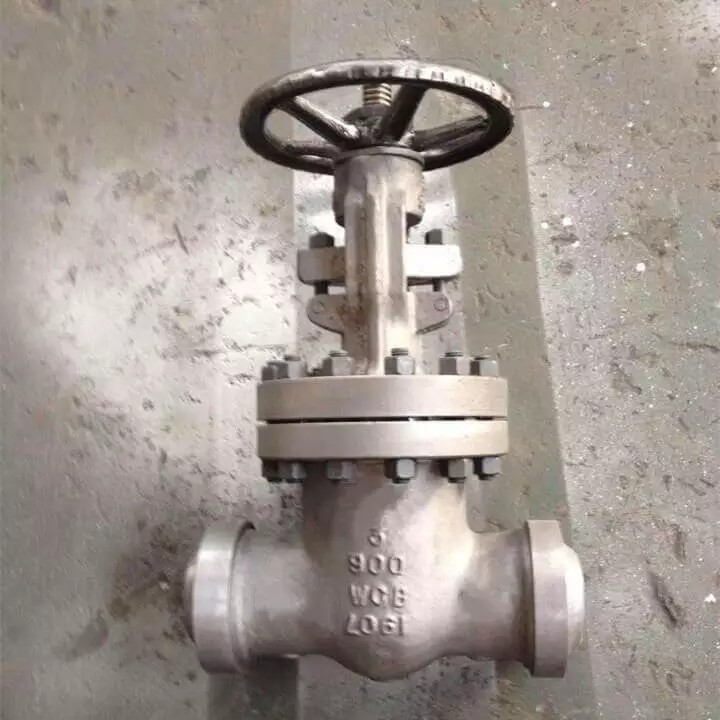

API 600 Gate Valve, Bolted Bonnet, WCB, 3 Inch, 900 LB, BW
Key Specifications / Features
Model No.: WV-231228-AGV-14 Hits: 115
As a distinguished API 600 Gate Valve Provider, we are pleased to introduce our high-quality gate valve crafted for precise fluid control. Manufactured from robust ASTM A216 WCB material, this 3-inch gate valve adheres to the stringent standards of API 600. With a Class 900 LB rating and DN80 specifications, our gate valve is designed for optimal performance in various applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 600.
Body: ASTM A216 WCB
Nominal size: 3 Inch.
Nominal class: 900 LB.
End Connection: Butt weld.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: 3 Inch.
Nominal class: 900 LB.
End Connection: Butt weld.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 600. |
| Face to face | ASME B16.10. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
| Special test | Impact test. |
