Strainer/ Filter

Y Type Strainers are named after their shape and normally used for course filtration where the amount of solids to be removed is small, and where frequent clean-out is not required. It is suitable for water, Air, Gas, petroleum, steam and other fluids, etc. The Y pattern strainers can be installed in both horizontal and vertical position. End connetcions including threaded, flanged and welded are available for Y Style strainers.
The Y Strainers screen can be cleaned by removing the plug in the cap or bolted cover allowing the strainer to drain the loose material inside the screen. The Y Pattern Strainers can also be cleaned by removing the bushing, cap or cover to access the screen element.

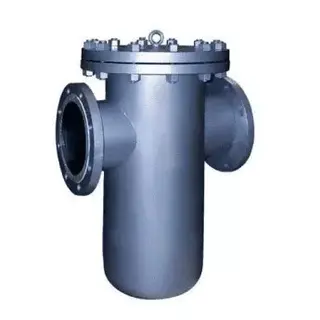

Basket type strainers are designed for installation in horizontal lines. They are commonly used for liquid service applications where high flow capacity is required. Weldon offer basket strainers in wide range of sizes, materials, pressures, end connetcions, and cover configurations.
Basket type strainers can be cleaned by removing the cap or cover and pulling out the basket screen for service. If the strainer screen is bottomless the blow-off plug can be removed allowing it to be drained and cleaned like a Y-strainer.

T type strainers derive its name from the shape of its shape which looks like "T", and are widely used in Chemical and Petrochemical applications. T type strainers from Weldon are available from 2 Inch (DN50) to 24 Inch (DN600), with a pressure rate up to Class 2500 LB according to ASME standard.
