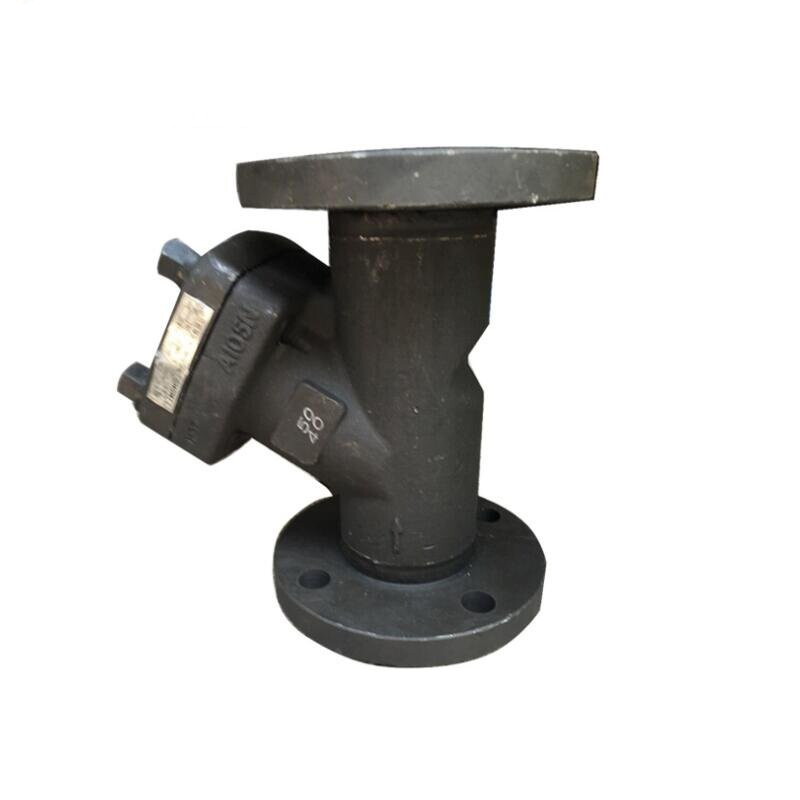

Forged Steel Y Strainer, API 6D, ASTM A105N, 2 Inch, 300 LB
Key Specifications / Features
Model No.: WV-240312-YTS-06 Hits: 0
Hailing from China, our API 6D forged steel Y strainer plant delivers superior quality products. Designed with precision, our strainers feature a 2-inch size and Class 300 LB rating, crafted from ASTM A105N material for durability. With a DN50 designation and PN40 pressure rating, they are suitable for a range of applications.
Request a quoteTags:
Detail Information
Standard: API 6D
Material: ASTM A105N, ASTM A182 LF2, SS 304, SS 316, SS 304L, SS 316L
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN40
End Connection: Flange, SW, BW
Test & Inspection: API 598
Face to Face: ASME B16.10
Service Application: Hydraulic, Steam, Chemical, Oil/Gas
Working Temperature: -29℃ – 650℃
Feature: Bolted Bonnet, Welded Bonnet
Material: ASTM A105N, ASTM A182 LF2, SS 304, SS 316, SS 304L, SS 316L
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN40
End Connection: Flange, SW, BW
Test & Inspection: API 598
Face to Face: ASME B16.10
Service Application: Hydraulic, Steam, Chemical, Oil/Gas
Working Temperature: -29℃ – 650℃
Feature: Bolted Bonnet, Welded Bonnet
