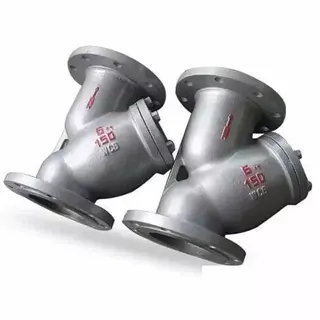

ASTM A216 WCB Y Type Strainer, ASME B16.34, 6 Inch, 150 LB
Key Specifications / Features
Model No.: WV-240408-YTS-01 Hits: 2
Offering top-quality Carbon Steel Y Type Strainers, crafted from ASTM A216 WCB. With a 6-inch size, Class 150 LB rating, and ASME B16.34 compliance, it ensures reliable performance. Equipped with SS 304 or SS 316 screens, and ASME B16.10 Flanged Ends, it undergoes API 598 testing for optimal functionality.
Request a quoteTags:
Detail Information
Y-Strainer, CARBON steel, WCB, API, is a filtering device designed to remove solid particles from liquids or gases within a pipeline system
Screen: SS 304, SS 316.
Standard: ASME B16.34.
Material: ASTM 216 WCB
Size: 6 Inch.
Pressure: Class 150 LB.
End Connection: ASME B16.10.
Face to face: ANSI B16.5
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: Flanged.
Pressure range: Class 150 LB (PN10-PN16).
Working temperature: -29℃ - +425℃.
Screen: SS 304, SS 316.
Standard: ASME B16.34.
Material: ASTM 216 WCB
Size: 6 Inch.
Pressure: Class 150 LB.
End Connection: ASME B16.10.
Face to face: ANSI B16.5
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: Flanged.
Pressure range: Class 150 LB (PN10-PN16).
Working temperature: -29℃ - +425℃.
| Product | Y-Strainer. |
| Nominal diameter | 1/2 Inch - 24 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 LB. |
| Material | Carbon Steel. |
| Design standard | ASME B16.34. |
| Connection end | ASME B16.10. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
