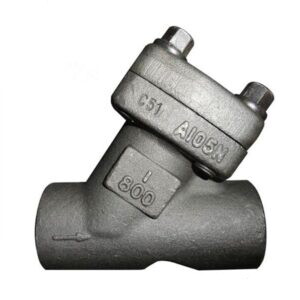

ASTM A105N Y Strainer, BS 5352, 1 Inch, Class 800 LB, SW End
Key Specifications / Features
Model No.: WV-240312-YTS-04 Hits: 1
Manufactured in China, this ASTM A105N Y strainer is engineered to the highest standards. With certifications including BS 5352 and API 602, it ensures reliability and durability. Featuring a 1-inch size, DN25 designation, and Class 800 LB rating, it's suitable for demanding applications. Its PN130 pressure rating and socket weld end design facilitate easy installation.
Request a quoteTags:
Detail Information
Standard: API 602, BS 5352
Material: ASTM A105N, ASTM A182 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F51, ASTM A182 F91, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304L, ASTM A182 F316L, etc.
Size: 1 Inch, DN25
Pressure: Class 800 LB, PN130
End Connection: SW
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -29℃ – 650℃
Feature:
1. Screw bonnet, Bolt bonnet, Butt-Welded bonnet
2. Full port and Reducing Port
3. A threaded and Pressure seal bonnet
Material: ASTM A105N, ASTM A182 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F51, ASTM A182 F91, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304L, ASTM A182 F316L, etc.
Size: 1 Inch, DN25
Pressure: Class 800 LB, PN130
End Connection: SW
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -29℃ – 650℃
Feature:
1. Screw bonnet, Bolt bonnet, Butt-Welded bonnet
2. Full port and Reducing Port
3. A threaded and Pressure seal bonnet
