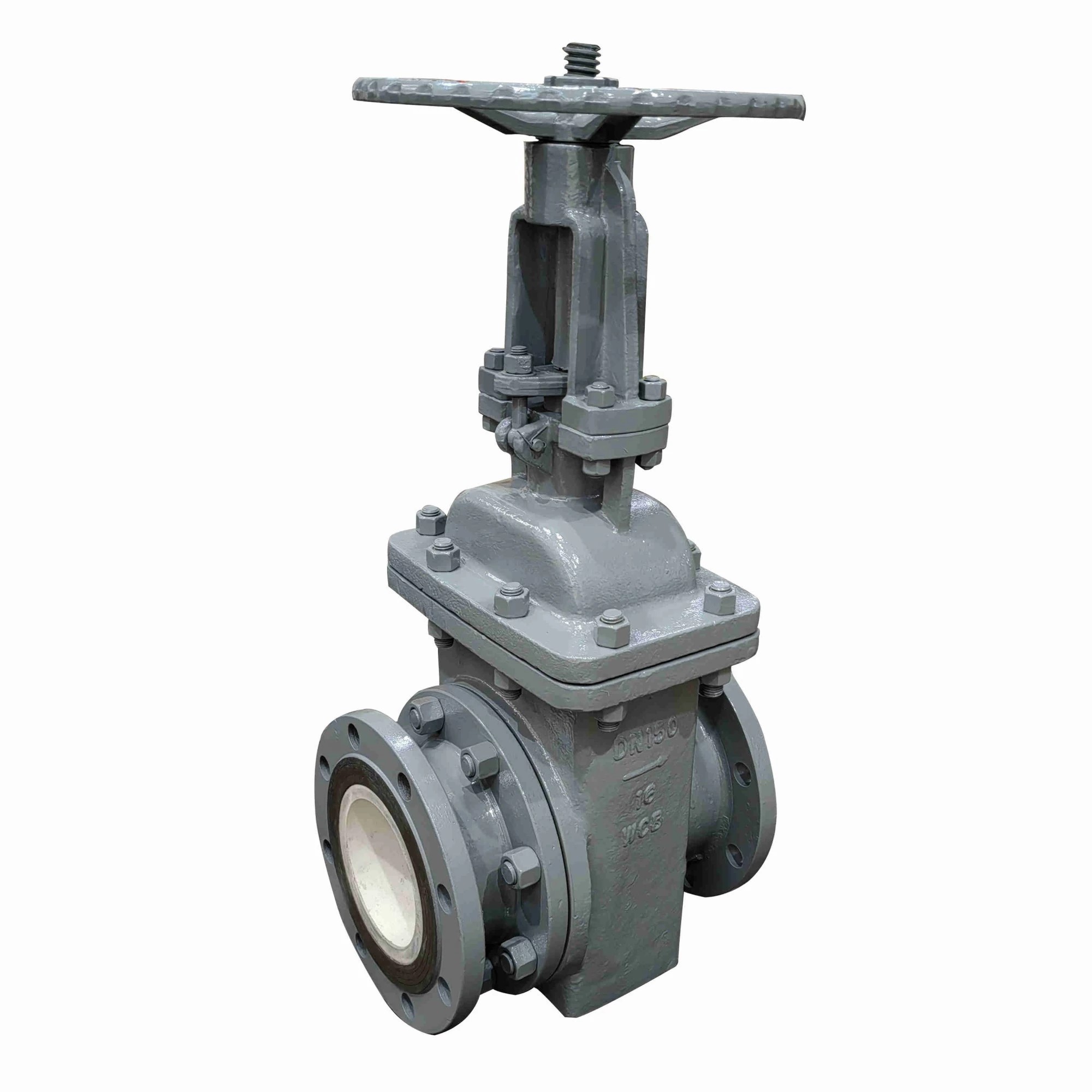

Residue Drainage Gate Valve, Ceramic Lined, WCB, 6 IN, 150 LB
Key Specifications / Features
Model No.: WV-240109-CLV-05 Hits: 5
Introducing our premier Residue Drainage Gate Valve, meticulously crafted to meet the highest industry standards. As a trusted provider, we offer a valve featuring a Ceramic Lined design for enhanced durability and longevity. Constructed from ASTM A216 WCB material, this valve is engineered to excel in demanding applications.
Request a quoteTags
Detail Information
Residue drainage gate valves, bolted bonnet, raised flanged.
Design: API 6D.
Body: ASTM A216 WCB
Nominal size: 6 Inch, DN150.
Nominal class: 150 LB, PN16.
End Connection: RF flange.
Face to face: ASME B16.34.
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: Flanged.
Pressure range: PN10-16.
Working temperature: -29℃ - +100℃.
Technical parameters and characteristics
Design: API 6D.
Body: ASTM A216 WCB
Nominal size: 6 Inch, DN150.
Nominal class: 150 LB, PN16.
End Connection: RF flange.
Face to face: ASME B16.34.
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: Flanged.
Pressure range: PN10-16.
Working temperature: -29℃ - +100℃.
Technical parameters and characteristics
| Product | Residue drainage gate valves. |
| Nominal diameter | 2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | PN10-16. |
| Material | Carbon steel. |
| Design standard | API 6D. |
| Face to face | ASME B16.10. |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | Ash water mixture, slag mixture. |
| Model | PZ41TC |
