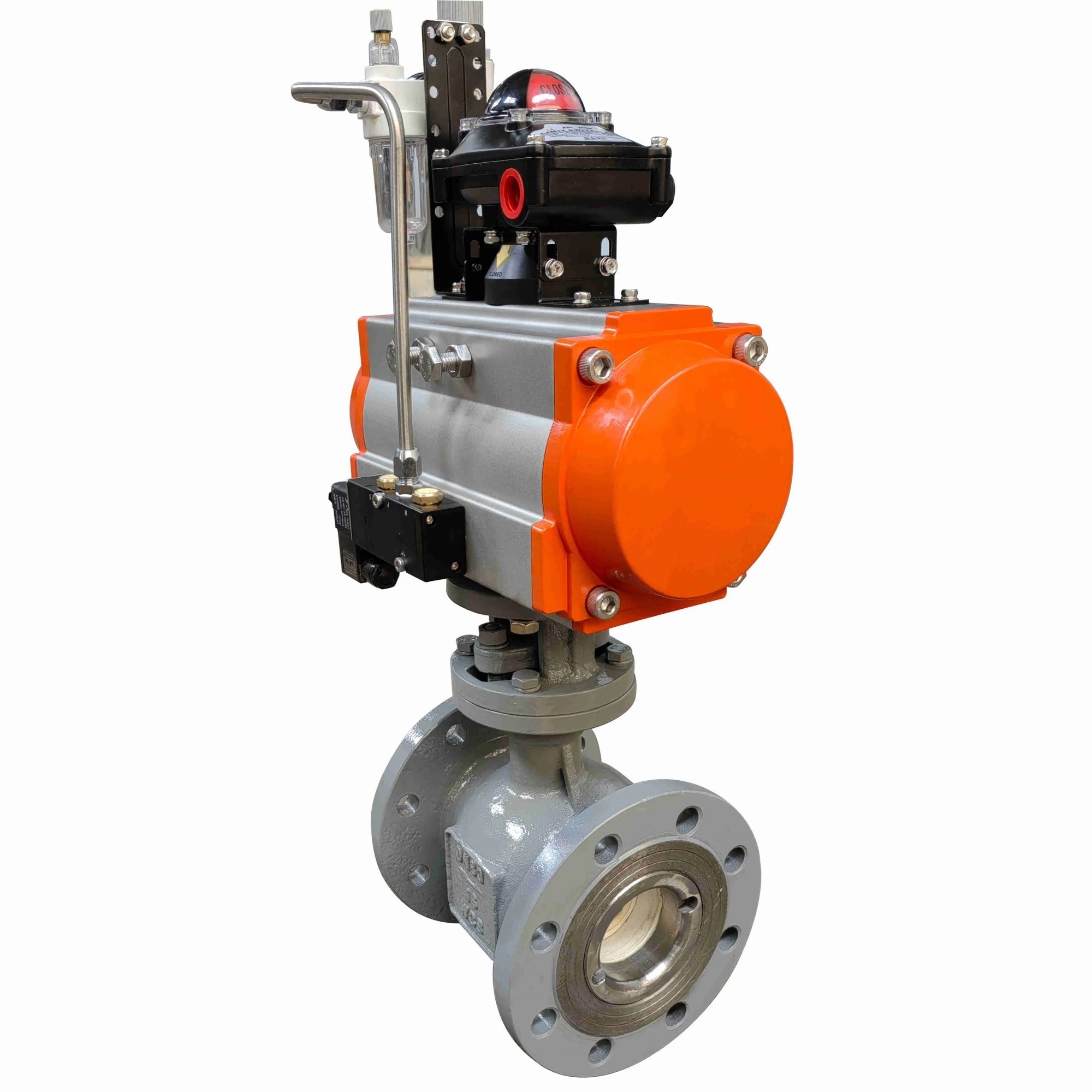

ASTM A216 WCB Ceramic Lined Ball Valve, 3 Inch, Class 150 LB
Key Specifications / Features
Model No.: WV-240109-CLV-04
Hits: 53
Welcome to our state-of-the-art Carbon Steel Ceramic Lined Ball Valve Factory, where precision meets reliability. Our valve, expertly crafted from ASTM A216 WCB material, adheres to the stringent API 6D standards, ensuring durability and top-notch performance. With a DN80 size, PN16 pressure rating, and 3-inch dimensions, this valve is designed for versatility and robust functionality.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Design: API 6D.
Body: ASTM A216 WCB
Nominal size: 3 Inch, DN80.
Nominal class: 150LB, PN16.
End Connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 59.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 16 Inch (DN50 - DN400).
End connection: Flanged.
Pressure range: PN10-PN16.
Working temperature: -29℃ - +150℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: 3 Inch, DN80.
Nominal class: 150LB, PN16.
End Connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 59.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 16 Inch (DN50 - DN400).
End connection: Flanged.
Pressure range: PN10-PN16.
Working temperature: -29℃ - +150℃.
Technical parameters and characteristics
| Product | Ceramic ball valve. |
| Nominal diameter | 2 Inch - 16 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | PN10-PN16. |
| Material | Carbon steel. |
| Design standard | API 6D. |
| Face to face | ASME B16.10. |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | granular media. |
| Model | Q64OTC |
