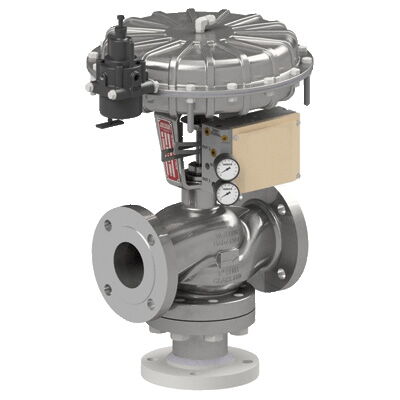

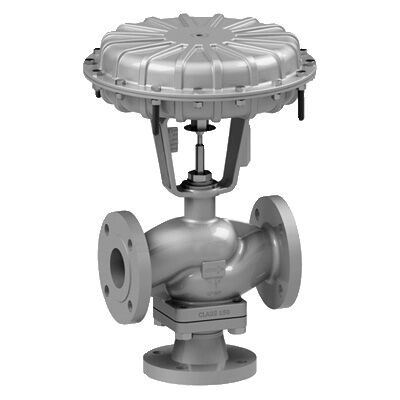

Pneumatic 3-Way Control Valve, SS 316, 3/4 Inch, 150 LB, NPT
Key Specifications / Features
Model No.: WV-240716-CTV-04 Hits: 11
This Stainless Steel 3-Way Control Valve, crafted from durable SS 316, is a 3/4-inch model rated at Class 150 LB. It features a Pneumatic Actuator for responsive operation and a full port design for optimal flow. The valve is fitted with NPT ends for seamless integration into existing systems. Equipped with Teflon seat rings for enhanced sealing, it is well-suited for applications involving water, glycol, or similar fluids.
Request a quoteTags
Detail Information
Materials: Stainless Steel, SS 316
Size: 3/4 Inch, DN20
Pressure: Class 150 LB, PN20
Weight: 19 lbs
Actuator Type: Pneumatic, Fail Closed "B" Port
Port Type: Full Port
Connection: NPT
Trim Style: 3-Way
Seat Type: SS (IV)
Control Signal: 3-27 PSIG
Packing: Teflon
Stainless Steel 3-Way Control Valves serve the purpose of blending two streams of liquid or redirecting the liquid flow either towards or around a piece of equipment, such as a bypass. To ensure a steady flow that facilitates stable functioning, it is crucial that the pressure reduction across both flow routes, from the inlet to the outlet, is approximately the same. These valves feature a disc-style construction made from Stainless Steel, which enhances their durability and longevity. For improved sealing performance or for applications involving water or glycol, Teflon seat rings can be installed, suitable for temperatures up to a maximum of 450°F.
Size: 3/4 Inch, DN20
Pressure: Class 150 LB, PN20
Weight: 19 lbs
Actuator Type: Pneumatic, Fail Closed "B" Port
Port Type: Full Port
Connection: NPT
Trim Style: 3-Way
Seat Type: SS (IV)
Control Signal: 3-27 PSIG
Packing: Teflon
Stainless Steel 3-Way Control Valves serve the purpose of blending two streams of liquid or redirecting the liquid flow either towards or around a piece of equipment, such as a bypass. To ensure a steady flow that facilitates stable functioning, it is crucial that the pressure reduction across both flow routes, from the inlet to the outlet, is approximately the same. These valves feature a disc-style construction made from Stainless Steel, which enhances their durability and longevity. For improved sealing performance or for applications involving water or glycol, Teflon seat rings can be installed, suitable for temperatures up to a maximum of 450°F.
