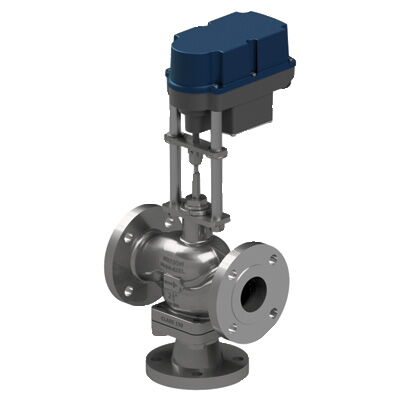

Electric 3-Way Control Valve, Stainless Steel, 3 IN, 150 LB
Key Specifications / Features
Model No.: WV-240716-CTV-05 Hits: 14
This Electric Operated Three-Way Control Valve, supplied by a reputable provider, is a robust 3-inch model designed for Class 150 LB applications. Constructed with premium Stainless Steel SS 316, it offers superior corrosion resistance and durability. The valve is enhanced with Teflon seat rings for excellent sealing performance and is suitable for a variety of fluid control tasks.
Request a quoteTags
Detail Information
Materials: Stainless Steel, SS 316
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
Weight: 92 lbs
Actuator Type: Electric, Capacitor - Fail Closed "A" Port
Port Type: Full Port
Connection: Flanged
Trim Style: 3-Way
Cv Factors: 110.0
Control Signal: 0-10 V
The Electric Actuator-equipped Stainless Steel 3-Way Control Valves offer a sturdy and user-friendly option in contrast to their Pneumatically-Actuated counterparts, particularly suitable for settings where pneumatic supply lines are absent. These valves are equipped with an Electric Actuator that can operate on either Super Capacitors for fail-safe operation (EC) or with a Spring Return mechanism (ES), ensuring that the valve will close fully in the event of a power failure.
Designed for blending two liquid flows or for rerouting liquid around a device such as a bypass, these 3-Way Valves feature a durable disc design crafted from Stainless Steel to ensure a long service life. For applications requiring enhanced sealing or for use with water or glycol, the valves can be fitted with Teflon seat rings, which are capable of withstanding temperatures up to 450°F.
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
Weight: 92 lbs
Actuator Type: Electric, Capacitor - Fail Closed "A" Port
Port Type: Full Port
Connection: Flanged
Trim Style: 3-Way
Cv Factors: 110.0
Control Signal: 0-10 V
The Electric Actuator-equipped Stainless Steel 3-Way Control Valves offer a sturdy and user-friendly option in contrast to their Pneumatically-Actuated counterparts, particularly suitable for settings where pneumatic supply lines are absent. These valves are equipped with an Electric Actuator that can operate on either Super Capacitors for fail-safe operation (EC) or with a Spring Return mechanism (ES), ensuring that the valve will close fully in the event of a power failure.
Designed for blending two liquid flows or for rerouting liquid around a device such as a bypass, these 3-Way Valves feature a durable disc design crafted from Stainless Steel to ensure a long service life. For applications requiring enhanced sealing or for use with water or glycol, the valves can be fitted with Teflon seat rings, which are capable of withstanding temperatures up to 450°F.
