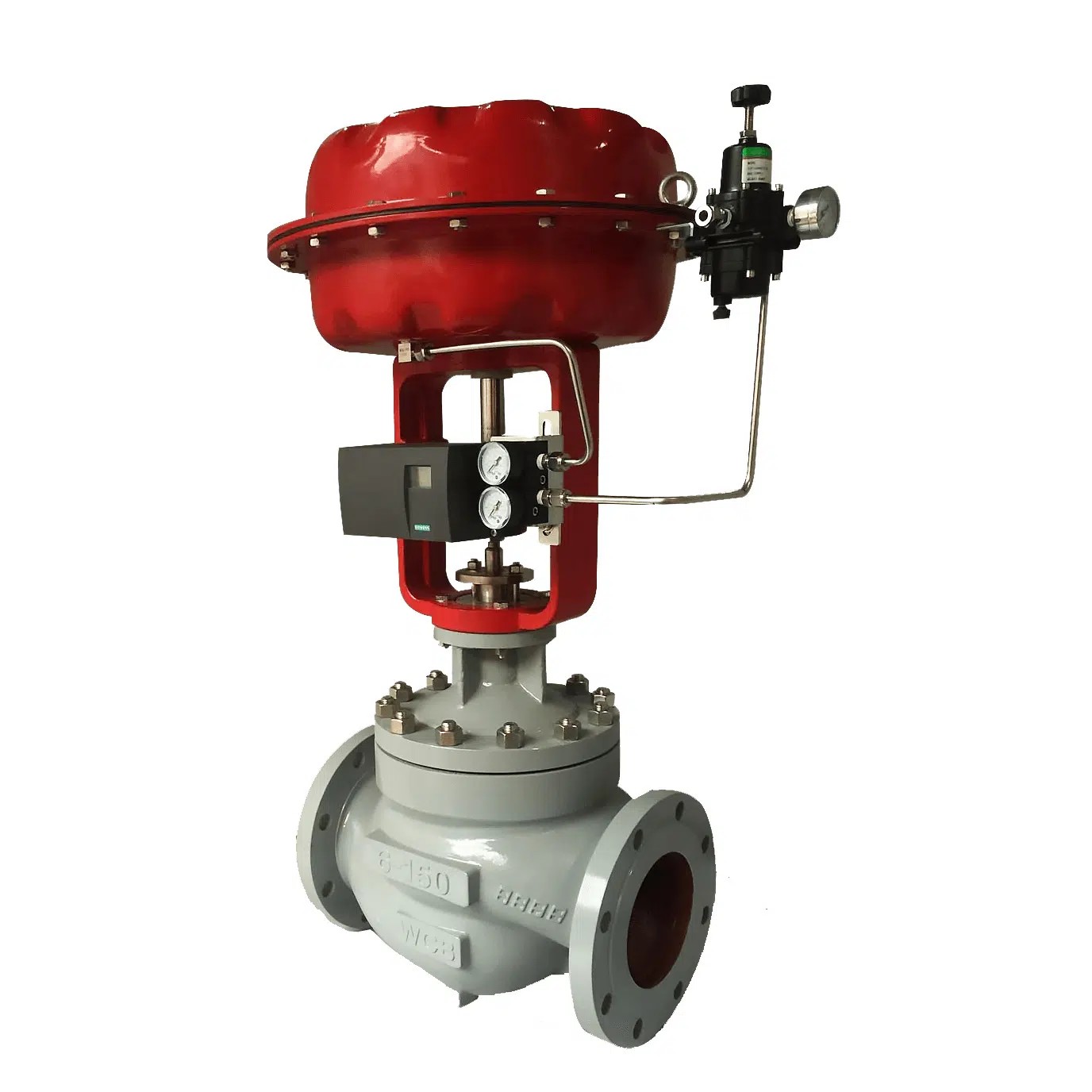

Pressure Balanced Cage Control Valve, A352 LCB, 3/4-16 Inch
Key Specifications / Features
Model No.: WV-240130-CTV-07 Hits: 1
Experience optimal control with our Pneumatic Pressure Balanced Cage Control Valve. Crafted from ASTM A352 LCB, this valve is available in sizes ranging from 3/4 to 16 inches, designed for Class 150-600 LB applications with DN20-DN400 specifications. Choose from versatile end options, including flanged, welded, and threaded.
Request a quoteTags:
Detail Information
Size: 3/4-16 Inch, DN20-DN400
ANSI Class: 150-600 LB, PN20-PN100
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
End connection
Flanged End: FF, RF, RJ, LG
According to ANSI B16.5, JIS B2201, JB/T79.1, PN1.6MPa, JB/T79.2
Welded End: SW, BW
Threaded End: Rc
Bonnet
Plain bonnet (-17 to 230°C)
Extension bonnet Type 1 (-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2
Cryogenic Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Bellows type
ANSI Class: 150-600 LB, PN20-PN100
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
End connection
Flanged End: FF, RF, RJ, LG
According to ANSI B16.5, JIS B2201, JB/T79.1, PN1.6MPa, JB/T79.2
Welded End: SW, BW
Threaded End: Rc
Bonnet
Plain bonnet (-17 to 230°C)
Extension bonnet Type 1 (-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2
Cryogenic Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Bellows type
