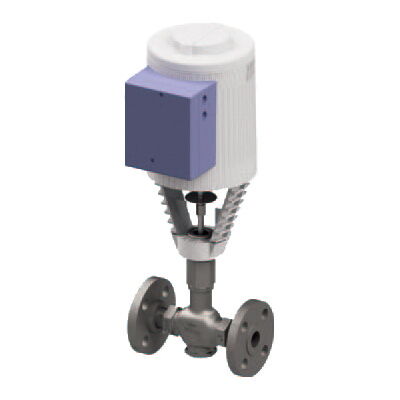

SS 316 Control Valves with Electric Actuator, 2 Inch, 150 LB
Key Specifications / Features
Model No.: WV-240716-CTV-03 Hits: 9
This Stainless Steel Control Valve is manufactured with premium SS 316 material, providing exceptional strength and corrosion resistance. With a 2-inch diameter and Class 150 LB rating, it's designed for reliable performance in various fluid control systems. The valve features NPT ends for easy connection and is equipped with an Electric Actuator for precise control.
Request a quoteTags
Detail Information
Size 2 Inch, DN50
Pressure: Class 150 LB, PN20
Weight: 19 lbs
Actuator Type: Spring - Fail Closed
Port Type: Full Port
Connection: NPT
Trim Style: EP
Seat Type: SS (IV)
Control Signal: 4-20 mA
Voltage: 24V AC
Packing: Teflon
The Stainless Steel Control Valves with Electric Actuator offer a robust and convenient electrically-actuated alternative for 2-way control valves. Their quick response time makes them ideal for cooling and boiler feed water applications, as well as on/off HVAC steam control. These electric actuators utilize spring return to retract the stem, allowing 2-way valves to fail fully closed in the event of power loss or signal failure. Additional features include manual override and visual electronic stroke indication.
Pressure: Class 150 LB, PN20
Weight: 19 lbs
Actuator Type: Spring - Fail Closed
Port Type: Full Port
Connection: NPT
Trim Style: EP
Seat Type: SS (IV)
Control Signal: 4-20 mA
Voltage: 24V AC
Packing: Teflon
The Stainless Steel Control Valves with Electric Actuator offer a robust and convenient electrically-actuated alternative for 2-way control valves. Their quick response time makes them ideal for cooling and boiler feed water applications, as well as on/off HVAC steam control. These electric actuators utilize spring return to retract the stem, allowing 2-way valves to fail fully closed in the event of power loss or signal failure. Additional features include manual override and visual electronic stroke indication.
