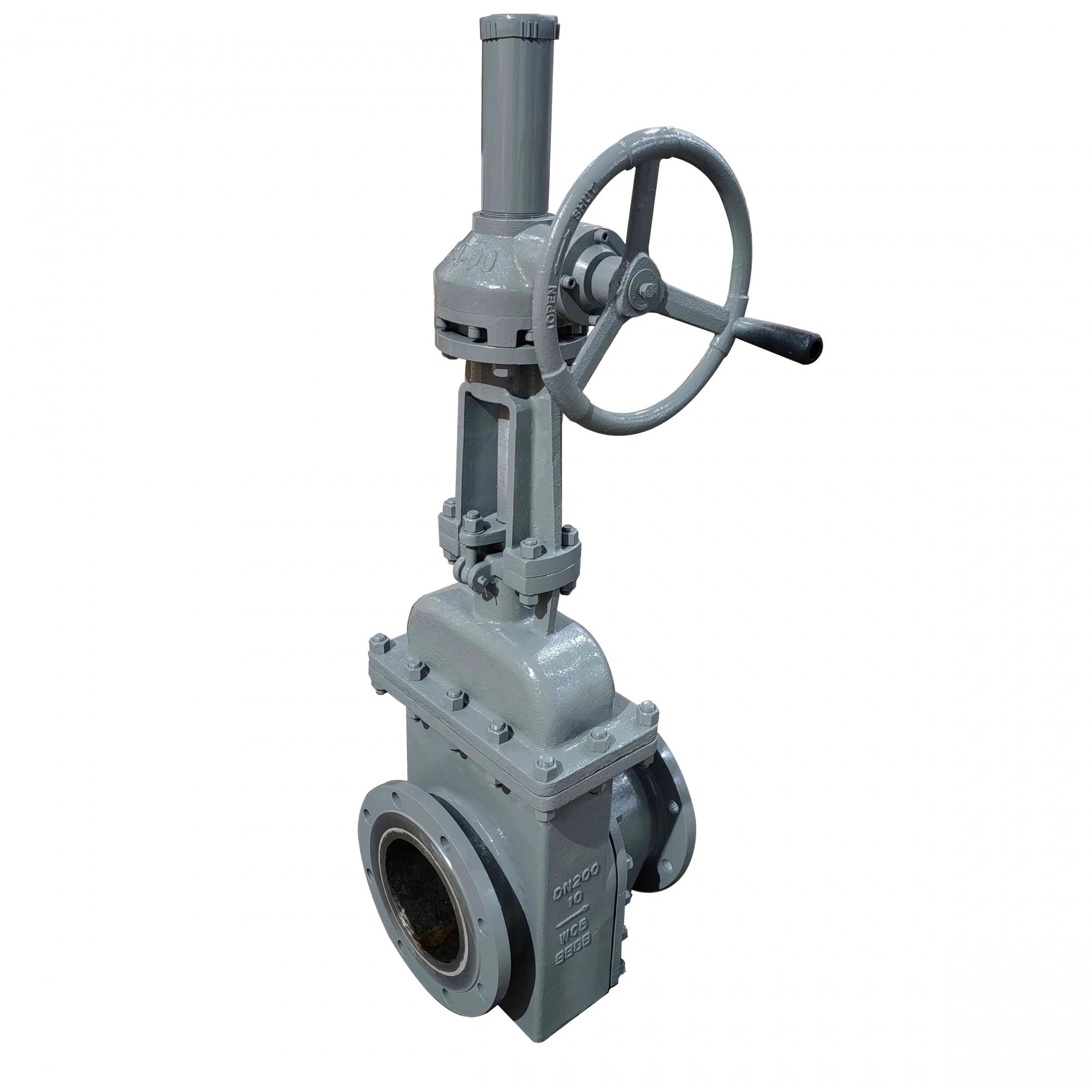

High Chromium Steel Scum Gate Valve, WCB, DN200, PN10, RF
Key Specifications / Features
Model No.: WV-231228-AGV-05 Hits: 23
As a reliable High Chromium Steel Scum Gate Valve Provider, we present a robust solution for your fluid control needs. Our 8-inch valve, crafted from Carbon Steel ASTM A216 WCB with High Chromium Steel components, adheres to the GB/T 12234-2007 standard. With a DN200 size and PN10 rating, this gate valve is designed for optimal performance in various applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: GB/T 12234-2007.
Body: ASTM A216 WCB
Nominal size: DN200.
Nominal class: PN10.
End Connection: RF.
Face to face: GB/T 12221.
Test and inspection: GB/T 13927.
Product Range:
Body material: Carbon Steel.
Normal diameter: DN200 - DN800.
End connection: BW, Flanged.
Pressure range: PN10 - PN25.
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: DN200.
Nominal class: PN10.
End Connection: RF.
Face to face: GB/T 12221.
Test and inspection: GB/T 13927.
Product Range:
Body material: Carbon Steel.
Normal diameter: DN200 - DN800.
End connection: BW, Flanged.
Pressure range: PN10 - PN25.
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | High chromium steel scum gate valve. |
| Nominal diameter | DN200 - DN800. |
| Design temp. | Down to -29℃. |
| Design pressure | PN16 - PN25. |
| Material | Carbon Steel. |
| Design standard | GB/T 12234. |
| Face to face | GB/T 12221. |
| Connection end | BW, Flange. |
| Test standard | GB/T 13927. |
| Package | Plywood |
| Application | The oil and gas industry |
