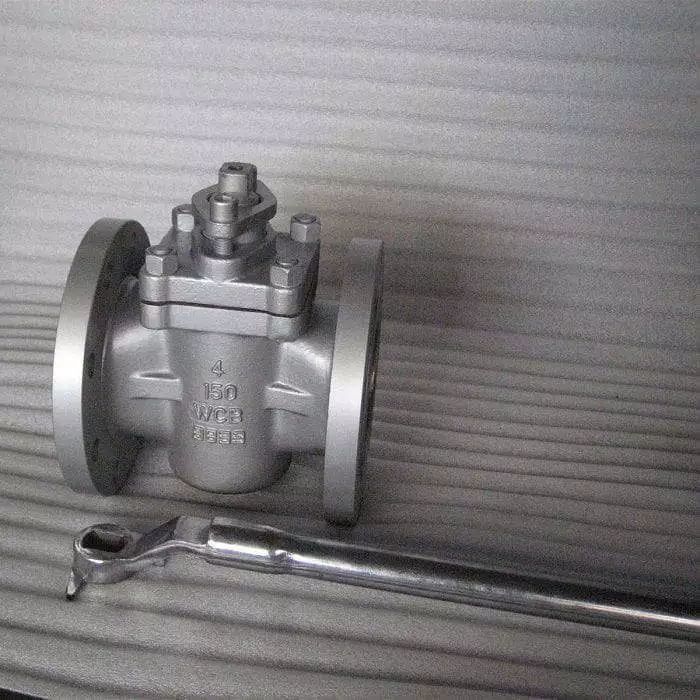

Bolted Bonnet Plug Valve, API 6D, ASTM A216 WCB, 4 IN, 150 LB
Key Specifications / Features
Model No.: WV-240105-SPV-04 Hits: 1
As a leading Bolted Bonnet Plug Valve Fabricator, we present our meticulously crafted valve. With a 4-inch size, DN100 dimensions, and Class 150 LB rating, this valve adheres to API 6D standards. Crafted from durable Carbon Steel ASTM A216 WCB, it features smooth lever operation, RF flanged end, and undergoes rigorous API 598 testing for uncompromised quality.
Request a quoteTags:
Detail Information
Design: API 6D
Body: ASTM A216 WCB
Nominal size: 4 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Lever
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: Flange.
Pressure range: Class 150 - 1500 LB (PN16 - PN160).
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: 4 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Lever
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: Flange.
Pressure range: Class 150 - 1500 LB (PN16 - PN160).
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Plug valve. |
| Nominal diameter | 1/2 Inch - 24 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 1500 LB. |
| Material | Carbon Steel. |
| Design standard | API 6D |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gearbox |
