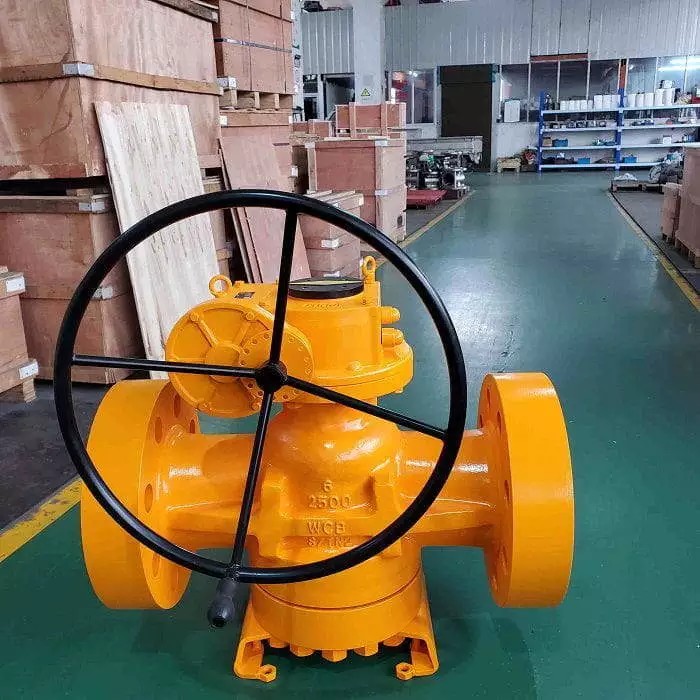

API 6D Lubricated Plug Valve, ASTM A216 WCB, 6 Inch, 2500 LB
Key Specifications / Features
Model No.: WV-240105-PBPV-03 Hits: 13
Crafted to perfection, our API 6D Lubricated Plug Valve is a powerhouse with a 6-inch size, Class 2500 LB rating, and ASTM A216 WCB construction. Featuring a robust bolted bonnet, efficient gearbox operation, and available in DN150 size with RF, RTJ, and BW ends, this valve ensures unparalleled performance. Trust in its reliability for your high-pressure applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Plug valve, carbon steel, bolted bonnet, lubricated.
Design: API 6D, API 599
Body: ASTM A216 WCB
Nominal size: 6 Inch.
Nominal class: 2500 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Plug valve, carbon steel, bolted bonnet, lubricated.
Design: API 6D, API 599
Body: ASTM A216 WCB
Nominal size: 6 Inch.
Nominal class: 2500 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Lubricated Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 6D, API 599 |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gearbox |
