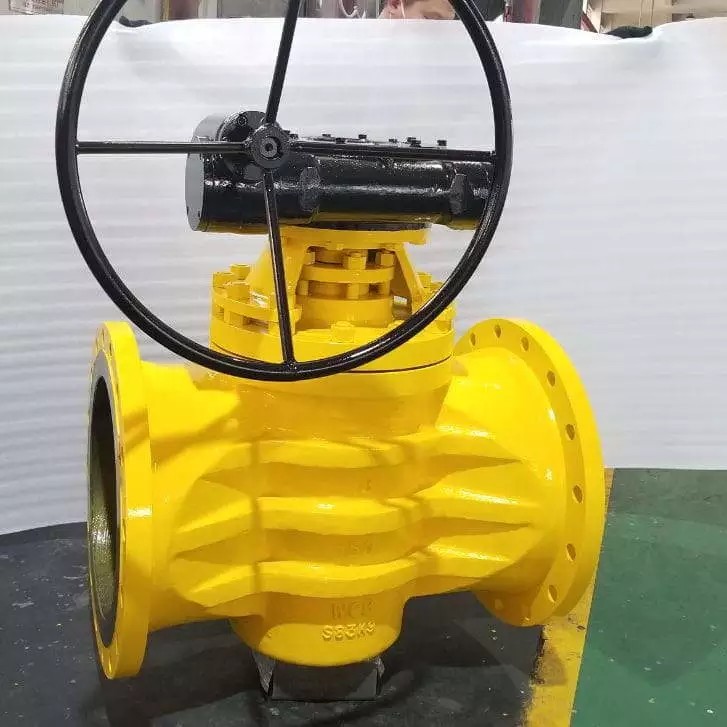

API 599 Plug Valve, ASTM A216 WCB, 16 Inch, Class 150 LB, RF
Key Specifications / Features
Model No.: WV-240105-PBPV-02
Hits: 138
Explore excellence with our API 599 Plug Valve milled in China. Crafted from Carbon Steel ASTM A216 WCB, this valve stands at an impressive 16 inches, with a Class 150 LB rating and DN400 size. Its features include a secure bolted bonnet, efficient gear box operation, and RF end, all designed for optimum performance.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Design: API 599
Body: ASTM A216 WCB
Nominal size: 16 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 1500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: 16 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 - 1500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 1500 LB. |
| Material | Carbon Steel. |
| Design standard | API6D,API599 |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gear box |
