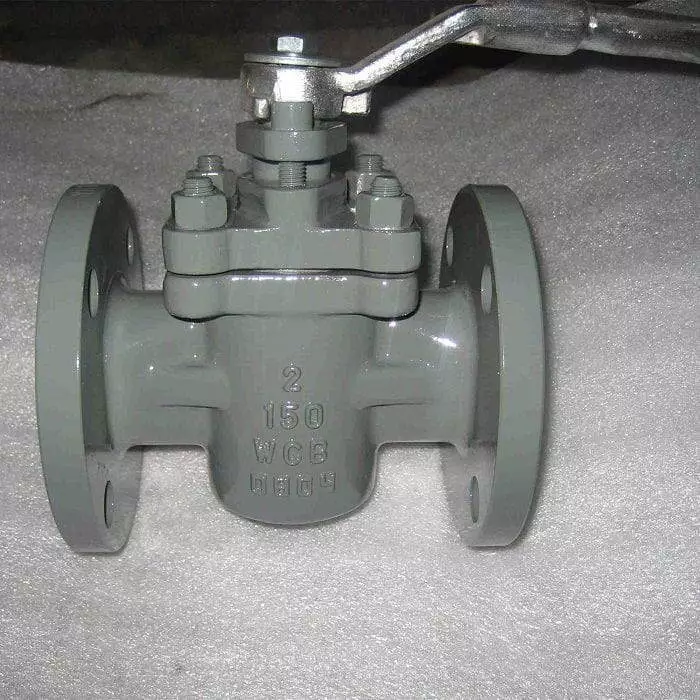

Sleeved Plug Valve, API 6D, API 599, WCB, 2 Inch, 150 LB, RF
Key Specifications / Features
Model No.: WV-240105-SPV-01 Hits: 63
Introducing our ASTM A216 WCB Sleeved Plug Valve, designed in accordance with API 6D and API 599 standards. With a compact 2-inch size, DN50 dimensions, and a Class 150 LB rating, this valve offers exceptional performance. The bolted bonnet ensures secure operation, and the lever operation provides ease of use.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 6D, API 599
Body: ASTM A216 WCB
Nominal size: 2 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: LEVER
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 -2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: 2 Inch.
Nominal class: 150 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: LEVER
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 -2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | 904L. |
| Design standard | API 6D, API 599 |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gear box |
