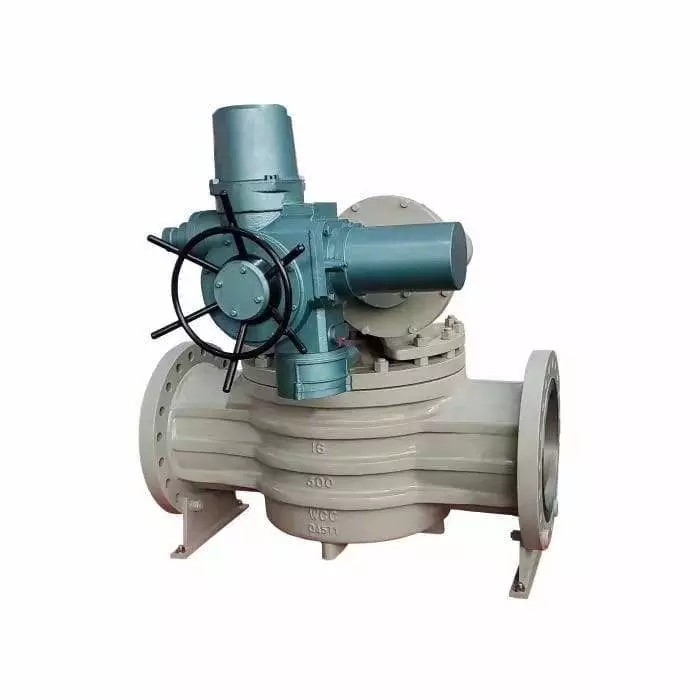

API 6D Sleeved Plug Valve, ASTM A216 WCC, 16 Inch, 300 LB, RF
Key Specifications / Features
Model No.: WV-240105-SPV-03 Hits: 20
Discover precision with our Carbon Steel Sleeve Plug Valve crafted from ASTM A216 WCC. This valve, compliant with API 6D and API 599, boasts a substantial 16-inch size and a Class 300 LB rating. Featuring a reliable gearbox operator, bolted bonnet, and various end options including RF, RTJ, and BW, it ensures optimal performance and adaptability for diverse industrial needs.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 6D, API 599
Body: ASTM A216 WCC
Nominal size: 16 Inch.
Nominal class: 300 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 -2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Body: ASTM A216 WCC
Nominal size: 16 Inch.
Nominal class: 300 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 -2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Sleeve Type, Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API6D,API599 |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gear box |
