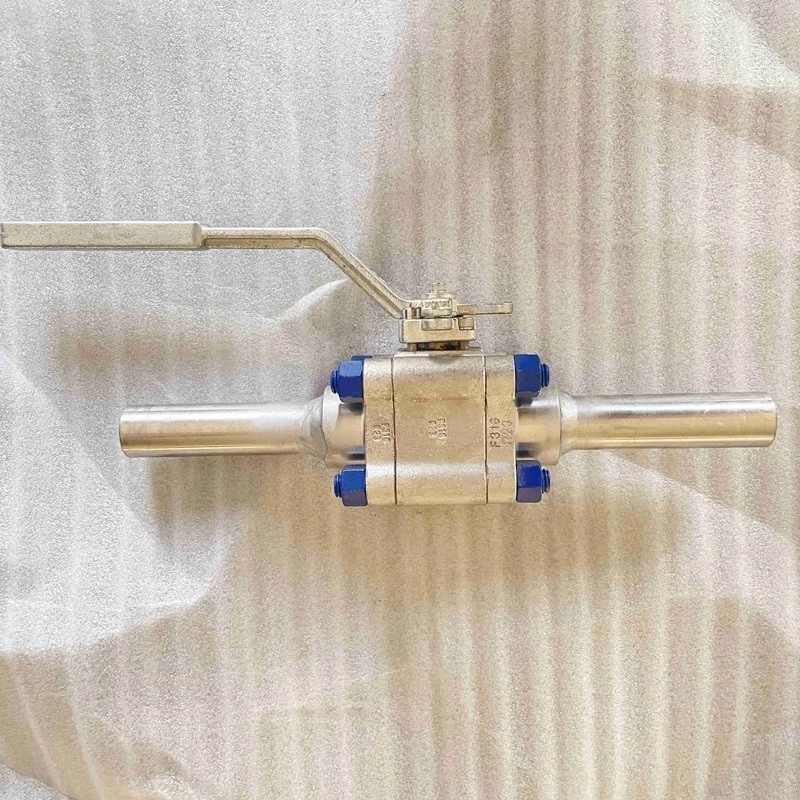

Bolted Bonnet Ball Valve, ASTM A182 F316, 1-1/2 Inch, 800 LB

Bolted Bonnet Ball Valve, ASTM A182 F316, 1-1/2 Inch, 800 LB

Key Specifications / Features

Model No.: WV-231220-FSBV-03 Hits: 1

Welcome to our Bolted Bonnet Ball Valve Factory, where precision and quality come together seamlessly. Our 1-1/2 Inch valves, forged from high-quality ASTM A182 F316, adhere to API 608 standards and boast a Class 800 LB rating. Designed for DN40 and PN130 applications, these three-piece ball valves feature a Bolted Bonnet for secure sealing. With pipes on both sides for versatile connections and a lever operating mechanism for user-friendly control, our valves are engineered to meet the diverse requirements of industrial applications.

Request a quote

Detail Information

On this page

Detail Infomation

Valve description:
Ball valve, stainless steel, bolted bonnet, three pieces, FULL bore.
Design: API 608.
Body: ASTM A182 F316
Nominal size: 1 1/2 Inch.
Nominal class: 800 LB.
End Connection: PIPE ON BOTH SIDES.
OPERATION: LEVER
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange, SW, NPTF.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics
Product Ball valve.
Nominal diameter 1/2 - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Carbon Steel.
Design standard API608.
Face to face MFG'S.
OPERATION LEVER
Connection end BW, Flange, SW, NPTF.
Test standard API 598.
Package Plywood
Application The oil and gas industry
