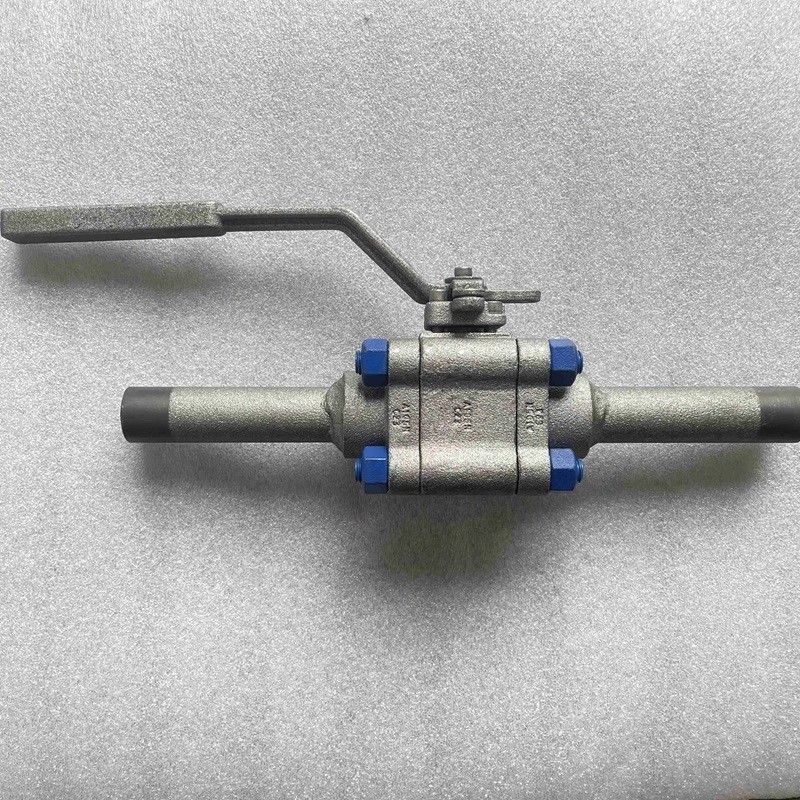

Three-piece Ball Valve, ASTM A105N, API 608, 1/2 IN, 800 LB
Key Specifications / Features
Model No.: WV-231220-FSBV-04 Hits: 47
As a dedicated Three-piece Ball Valve Provider, we offer precision-engineered solutions for your fluid control needs. Our 1/2 Inch valves, crafted from high-quality ASTM A105N material, comply with API 608 standards and boast a Class 800 LB rating. Designed for DN15 and PN130 applications, these ball valves feature a Bolted Bonnet for secure sealing.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Ball valve, carbon steel, bolted bonnet, three-pieces
Design: API 608.
Body: ASTM A105N
Nominal size: 1/2 Inch.
Nominal class: 800 LB.
End Connection: PIPE ON BOTH SIDES.
OPERATION: GEAR
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange, NPTF, SW.
Pressure range: Class 150 - 1500 LB (PN16 - PN320).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Ball valve, carbon steel, bolted bonnet, three-pieces
Design: API 608.
Body: ASTM A105N
Nominal size: 1/2 Inch.
Nominal class: 800 LB.
End Connection: PIPE ON BOTH SIDES.
OPERATION: GEAR
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange, NPTF, SW.
Pressure range: Class 150 - 1500 LB (PN16 - PN320).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Ball valve. |
| Nominal diameter | 1/2 - 2 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 1500 LB. |
| Material | Carbon Steel. |
| Design standard | API608. |
| Face to face | MFG'S. |
| OPERATION | LEVER |
| Connection end | BW, Flange, NPTF, SW. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
