ASTM A350 LF2 Globe Valve, ASME B16.34, 1 Inch, 300 LB, RF
Key Specifications / Features
Model No.: WV-231228-AGBV-07 Hits: 31

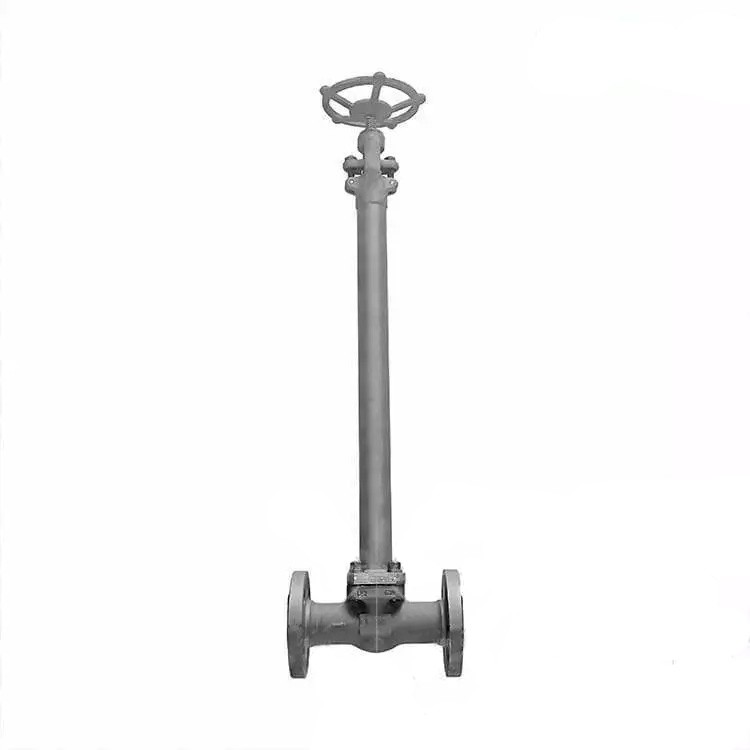

Our 1-inch valve, meticulously crafted from ASTM A350 LF2 material, adheres to the stringent standards of ASME B16.34 and API 602. With a Class 300 LB rating and DN25 specifications, this cryogenic globe valve is designed for optimal performance in low-temperature applications. Featuring RF (Raised Face) end connections, an extended stem for enhanced insulation, and OS & Y (Outside Screw and Yoke) configuration, our valve ensures secure and efficient operation.
Request a quoteTags:
Detail Information
Name: Forged Stem Cryogenic Globe Valve
Body material: Forged Steel A350 LF2
Size: 1 Inch, DN25
Pressure: Class 300 LB, CL300, PN50
Standard: API 602, ASME B16.34
Connection form: RF Flanged
Media: Oli, Gas, Water
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Low Temperature, Extended Stem BB, Outside Screw & Yoke (OS & Y), Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Product Range
Sizes: NPS 1/4-4 Inch
Pressure: Class 150-2500 LB
Design & manufacture according: API 602, ASME B16.34, BS 5352, DIN, JIS, GOST, TS, CE, API, ISO 9001, ISO 14001, ISO 18001
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, Alloy 20, Monel, Inconel, Hastelloy
Connection: SW, NPT, RF, or BW
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
Body material: Forged Steel A350 LF2
Size: 1 Inch, DN25
Pressure: Class 300 LB, CL300, PN50
Standard: API 602, ASME B16.34
Connection form: RF Flanged
Media: Oli, Gas, Water
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Low Temperature, Extended Stem BB, Outside Screw & Yoke (OS & Y), Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Product Range
Sizes: NPS 1/4-4 Inch
Pressure: Class 150-2500 LB
Design & manufacture according: API 602, ASME B16.34, BS 5352, DIN, JIS, GOST, TS, CE, API, ISO 9001, ISO 14001, ISO 18001
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, Alloy 20, Monel, Inconel, Hastelloy
Connection: SW, NPT, RF, or BW
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
| CL800 | Bolt Bonnet (BB), Welding Bonnet (WB), Reduce Port (RP), Full Port (FP), Outside Screw and Yoke (OS & Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) | |||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 79 | 92 | 111 | 120 | 152 | 172 | 220 |
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height | H | 170 | 172 | 207 | 228 | 270 | 320 | 356 |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | 44 |
| Weight (Kg) | B.B | 2.2 | 2.4 | 4.1 | 5.7 | 7.6 | 12.2 | 21 |
| W.B | 1.9 | 2.1 | 3.9 | 5.5 | 7.4 | 11.6 | 19.7 | |
 |
||||||||
| CL900~CL1500 | Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 92 | 111 | 120 | 152 | 172 | 220 | |
| Handwheel Diameter | W | 100 | 125 | 160 | 160 | 180 | 200 | |
| Height | H | 172 | 207 | 228 | 270 | 320 | 387 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) | B.B | 4.1 | 5.6 | 6.7 | 7.6 | 12.2 | 21 | |
| W.B | 3.8 | 5.4 | 6.5 | 7.4 | 12 | 20.2 | ||
 |
||||||||
| CL2500 | Welding Bonnet (WB), Reduce Port (RP), Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) | |||||||
| Size (NPS) | R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Face To Face | L | 120 | 120 | 152 | 172 | 220 | 220 | |
| Handwheel Diameter | W | 160 | 160 | 160 | 180 | 200 | 200 | |
| Height | H | 228 | 228 | 270 | 320 | 387 | 396 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) |
W.B | 6.7 | 6.5 | 7.6 | 12.2 | 21 | 20.7 | |
