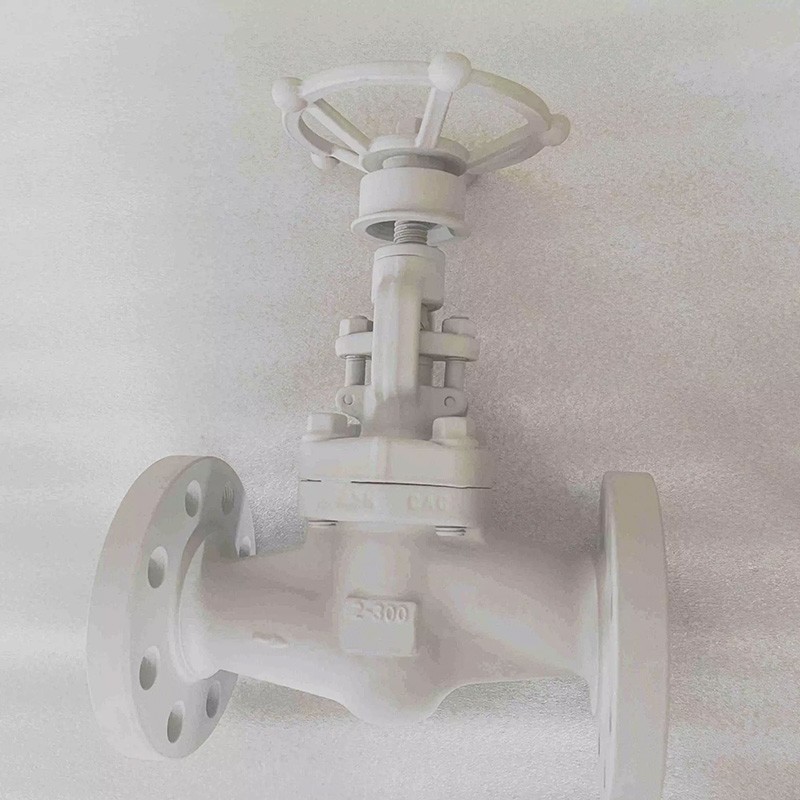

Rising Stem Globe Valve, ASTM A105, 2 Inch, Class 300 LB, RF
Key Specifications / Features
Model No.: WV-231222-AGBV-12 Hits: 39
Explore top-tier fluid control solutions with our Rising Stem Globe Valve. This precision-crafted valve, compliant with API 602 standards, is manufactured from high-quality Forged Steel ASTM A105. With a robust 2-inch design, it excels in Class 300 LB applications, ensuring optimal performance in diverse industrial settings.The Handwheel Operation feature provides precise control over fluid flow, making it a reliable choice for your applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Globe valve, Raised flange, Rising stem.Design: API 602.
Body: ASTM A105
Nominal size: 2 Inch.
Nominal class: 300 LB.
End Connection: RF, ASME B16.5.
Operation: Handwheel
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Globe valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 602. |
| Face to face | ASME B16.10. |
| Operation | Gear, handwheel |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
