Electric Actuated Globe Valve, ISO 5210, 1-4 Inch, 2500 LB
Key Specifications / Features
Model No.: WV-231228-AGBV-08
Hits: 97
As your trusted Electric Actuated Globe Valve Supplier, we offer a precision-engineered solution for efficient fluid control. Our valves, ranging from 1 to 4 inches, are crafted from ASTM A105N material, ensuring durability and reliability. Adhering to API 602 and ISO 5210 standards, these globe valves are designed for optimal performance in a variety of applications.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Name: Forged Steel Bare Stem Globe Valve
Body material: ASTM A105N
Size: 1 Inch - 4 Inch, DN25-DN100
Pressure: Class 2500 LB, CL2500, DN420
Standard: API 602, ISO 5210
Power: Electric Operated
Connection form: Welding-SW
Seal material: Gasket
Feature: Bare Stem, Forged Steel, Control Globe Valve, Outside Screw & Yoke, Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
Product Range
Sizes: NPS 1/2-4 Inch
Pressure: Class 150-2500 LB
Standard: TS, CE, API, BS 5352, DIN, JIS, GOST, ISO 9001, ISO 14001, ISO 18001
Design & manufacture according to API 602, ASME B16.34
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Connection: SW, NPT, RF, BW, RTJ
Material: Forged Steel ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, Alloy 20, Monel, Inconel, Hastelloy
Media: Oli, Gas, Water
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)
Body material: ASTM A105N
Size: 1 Inch - 4 Inch, DN25-DN100
Pressure: Class 2500 LB, CL2500, DN420
Standard: API 602, ISO 5210
Power: Electric Operated
Connection form: Welding-SW
Seal material: Gasket
Feature: Bare Stem, Forged Steel, Control Globe Valve, Outside Screw & Yoke, Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
Product Range
Sizes: NPS 1/2-4 Inch
Pressure: Class 150-2500 LB
Standard: TS, CE, API, BS 5352, DIN, JIS, GOST, ISO 9001, ISO 14001, ISO 18001
Design & manufacture according to API 602, ASME B16.34
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Connection: SW, NPT, RF, BW, RTJ
Material: Forged Steel ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, Alloy 20, Monel, Inconel, Hastelloy
Media: Oli, Gas, Water
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ - 450℉ (-54℃ - 232℃)

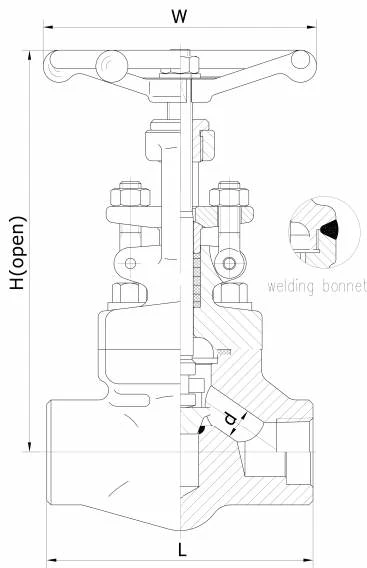

| CL800 | Bolt Bonnet (BB), Welding Bonnet (WB), Reduce Port (RP), Full Port (FP), Outside Screw and Yoke (OS & Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) | |||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 79 | 92 | 111 | 120 | 152 | 172 | 220 |
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height | H | 170 | 172 | 207 | 228 | 270 | 320 | 356 |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | 44 |
| Weight (Kg) | B.B | 2.2 | 2.4 | 4.1 | 5.7 | 7.6 | 12.2 | 21 |
| W.B | 1.9 | 2.1 | 3.9 | 5.5 | 7.4 | 11.6 | 19.7 | |
 | ||||||||
| CL900~CL1500 | Bolt Bonnet (BB), Welding Bonnet (WB), Reduce Port (RP), Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) | |||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 92 | 111 | 120 | 152 | 172 | 220 | |
| Handwheel Diameter | W | 100 | 125 | 160 | 160 | 180 | 200 | |
| Height | H | 172 | 207 | 228 | 270 | 320 | 387 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) | B.B | 4.1 | 5.6 | 6.7 | 7.6 | 12.2 | 21 | |
| W.B | 3.8 | 5.4 | 6.5 | 7.4 | 12 | 20.2 | ||
 | ||||||||

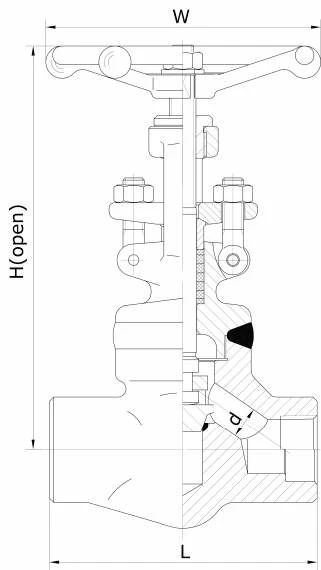

| CL2500 | Welding Bonnet (WB), Reduce Port (RP), Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) | |||||||
| Size (NPS) | R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Face To Face | L | 120 | 120 | 152 | 172 | 220 | 220 | |
| Handwheel Diameter | W | 160 | 160 | 160 | 180 | 200 | 200 | |
| Height | H | 228 | 228 | 270 | 320 | 387 | 396 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) | W.B | 6.7 | 6.5 | 7.6 | 12.2 | 21 | 20 | |
