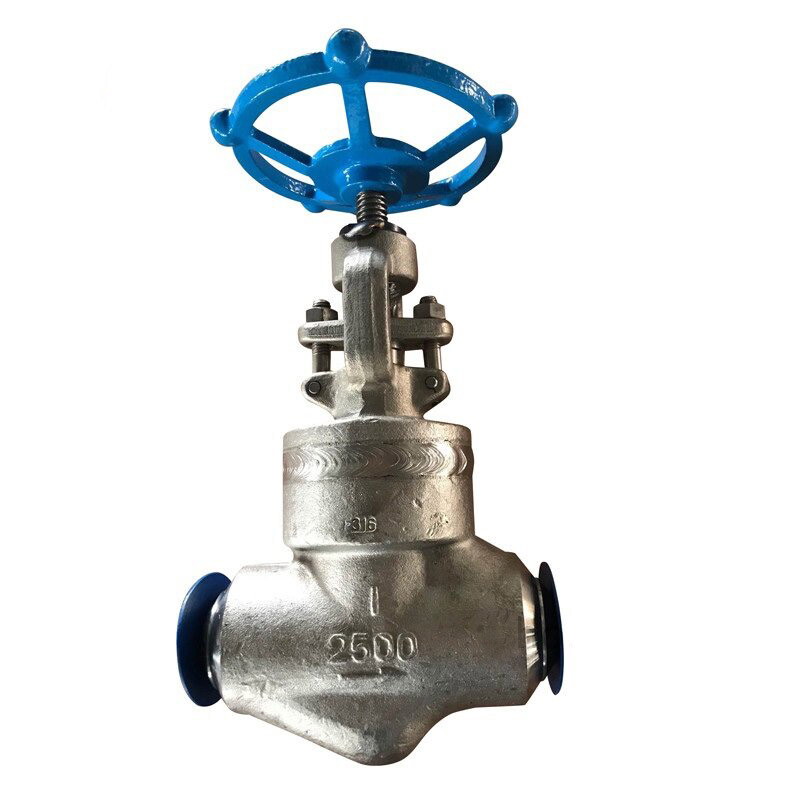

Welded Bonnet Globe Valve, ASTM A182 F316, 1 Inch, 2500 LB
Key Specifications / Features
Model No.: WV-240304-FGBV-01 Hits: 0
Discover our top-quality Welded Bonnet Globe Valves, designed to meet stringent standards. With a 1-inch size, Class 2500 LB rating, and ASTM A182 F316 construction, they ensure reliability and durability. Featuring API 602 and ASME B16.34 compliance, handwheel operation, butt welding ends, DN25 size, and PN420 pressure rating, our valves offer exceptional performance for your industrial applications.
Request a quoteTags:
Detail Information
Design: API 602, ASME B16.34, BS 5352, DIN 3352
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A182 F9, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, etc.
Size: 1 Inch, DN25
Pressure: Class 2500 LB, PN420
Operation: Handwheel
Inspection and Test: API 598, DIN 3202
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Butt welding Ends: ASME B16.25, DIN 3239
Products Range
Size: 1/2-2 Inch (DN15-DN50)
Pressure: Class 150-2500 LB (PN20-PN420)
Features:
Full port or reduced port design
General or needle disc
Bolted bonnet, welded bonnet, or pressure sealed bonnet
Flanged, butt-welded, socket- welded, or threaded ends
Optional Y structure
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A182 F9, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, etc.
Size: 1 Inch, DN25
Pressure: Class 2500 LB, PN420
Operation: Handwheel
Inspection and Test: API 598, DIN 3202
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Butt welding Ends: ASME B16.25, DIN 3239
Products Range
Size: 1/2-2 Inch (DN15-DN50)
Pressure: Class 150-2500 LB (PN20-PN420)
Features:
Full port or reduced port design
General or needle disc
Bolted bonnet, welded bonnet, or pressure sealed bonnet
Flanged, butt-welded, socket- welded, or threaded ends
Optional Y structure
