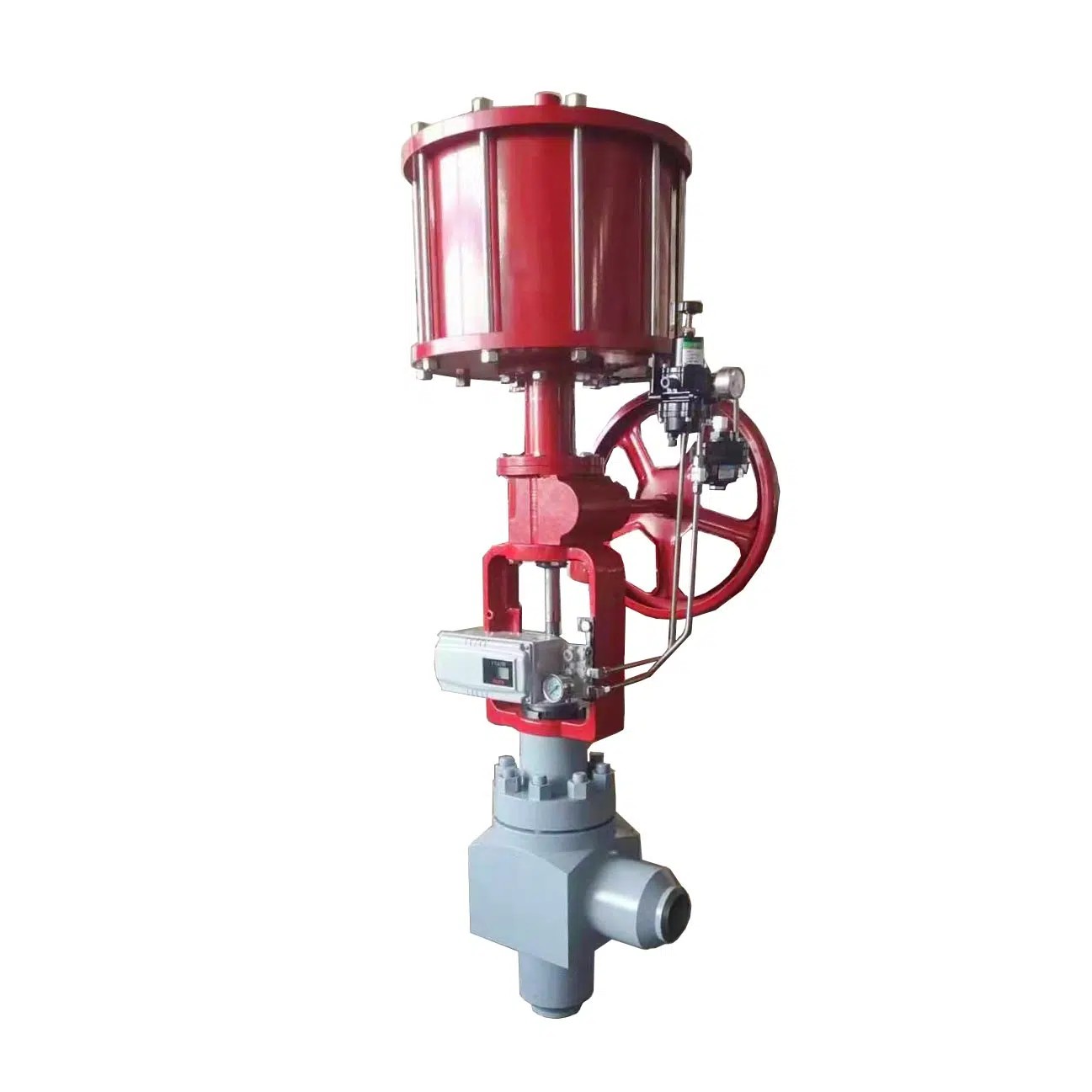

ASTM A216 WCB Angle Control Valve, 3/4-16 Inch, 150-1500 LB
Key Specifications / Features
Model No.: WV-240130-CTV-06 Hits: 3
Enhance control precision with our Angle Type Control Valve. Pneumatic actuated and crafted from Carbon Steel ASTM A216 WCB and ASTM A217 WC6, this valve is available in sizes ranging from 3/4 to 16 inches, catering to Class 150-1500 LB applications, and designed with DN20-DN400 and PN20-PN250 specifications.
Request a quoteTags:
Detail Information
Size: 1-1/4 - 16 Inch, DN32-DN400
ANSI Class: 150-1500 LB, PN20-PN250
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
Trim feature: Sleeve guided unbalanced trim structure, a combination of multi-hole cages
Body type: Straight-through type, angle type
Bonnet type: Standard type, heat dissipation type, cryogenic type, bellows
Flow characteristic: Equal percentage, linear, quick open
Shut-off class: ASME B16.104 V (standard metal seat) ASME B16.104 VI (shut-off soft seat)
Connection type: The flange type, butt welding type
ANSI Class: 150-1500 LB, PN20-PN250
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
Trim feature: Sleeve guided unbalanced trim structure, a combination of multi-hole cages
Body type: Straight-through type, angle type
Bonnet type: Standard type, heat dissipation type, cryogenic type, bellows
Flow characteristic: Equal percentage, linear, quick open
Shut-off class: ASME B16.104 V (standard metal seat) ASME B16.104 VI (shut-off soft seat)
Connection type: The flange type, butt welding type
