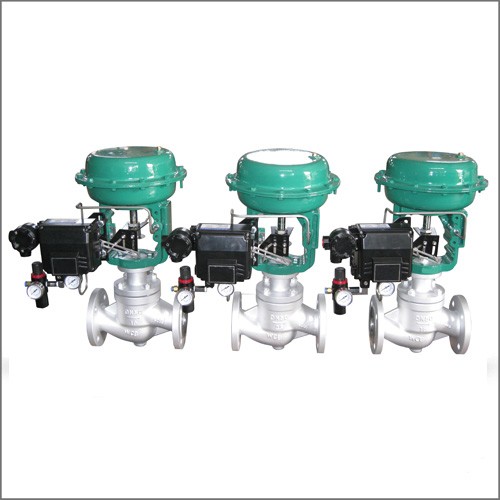

DIN 3356 Pneumatic Flow Control Valve, WCB, DN50, PN16, RF
Key Specifications / Features
Model No.: WV-240124-CTV-12 Hits: 1
As a leading fabricator of pneumatic flow control valves, we specialize in precision engineering to meet your industrial demands. Our valves, crafted from durable carbon steel ASTM A216 WCB, are designed for optimal performance. With a nominal size of DN50 (2 inches), these valves adhere to PN16 and Class 150 LB standards, providing versatility for various applications.
Request a quoteTags:
Detail Information
Design Standard: DIN 3356.
Body Material: ASTM A216 WCB.
Nominal Diameter: DN50, 2 Inch.
Pressure: PN16, Class 150 LB.
End Connection: RF.
Face to Face: EN 558-1.
Working Temperature: -29℃ - +425℃.
Mode of Operation: Pneumatic Actuator.
Test and Inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End Connection: BW, Flanged.
Pressure Range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric Actuator, Pneumatic Actuator, Electrohydraulic Actuator.
Working Temperature: -196℃ - +570℃.
Body Material: ASTM A216 WCB.
Nominal Diameter: DN50, 2 Inch.
Pressure: PN16, Class 150 LB.
End Connection: RF.
Face to Face: EN 558-1.
Working Temperature: -29℃ - +425℃.
Mode of Operation: Pneumatic Actuator.
Test and Inspection: DIN 3230, EN 12266-1.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 3/4 Inch - 16 Inch (DN20 - DN400).
End Connection: BW, Flanged.
Pressure Range: Class 150 LB - 2500 LB (PN16 - PN420).
Operation: Electric Actuator, Pneumatic Actuator, Electrohydraulic Actuator.
Working Temperature: -196℃ - +570℃.
