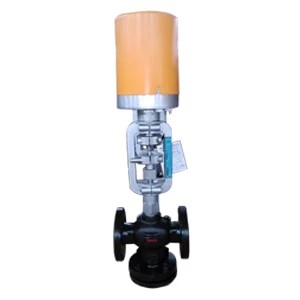

Two or Three Way Control Valve, ASTM A217 WC6, 1/2-20 Inch

Two or Three Way Control Valve, ASTM A217 WC6, 1/2-20 Inch

Key Specifications / Features

Model No.: WV-240124-CTV-01 Hits: 1

Manufacturer of two or three-way control valves crafted from high-quality materials such as ASTM A216 WCB and ASTM A217 WC6. Available in a range of sizes from DN15 to DN500, with pressure ratings spanning PN16 to PN420 and class ratings from 150 to 2500 LB. These versatile valves come in flange and SW end configurations, offering seamless integration into various systems. Equipped with PTFE seats, they ensure reliable and efficient control in diverse industrial applications.

Request a quote

Detail Information

Type: Three Way and Two Way Control Valve.
Bore: DN15-DN500, 1/2-20 Inch.
Connection: Flange, SW.
Bonnet Type: Normal type, High temperature type, Bellows type, Low temperature type.
Stuffing: PTFE, Flexible graphite.
Seat: PTFE.
Body material: ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M etc.
Actuator: Single spring diaphragm cylinder, multi-spring diaphragm cylinder, piston type/Double-acting cylinder, electric, hydraulic.
Nominal pressure: PN16-420, 5-63 K, Class 150-2500 LB.
Applicable temperature: -196℃ - 650℃.
Applicable medium: gas, water, oil, steam etc.
Flow characteristic: quick-open, equal percentage, linear.
