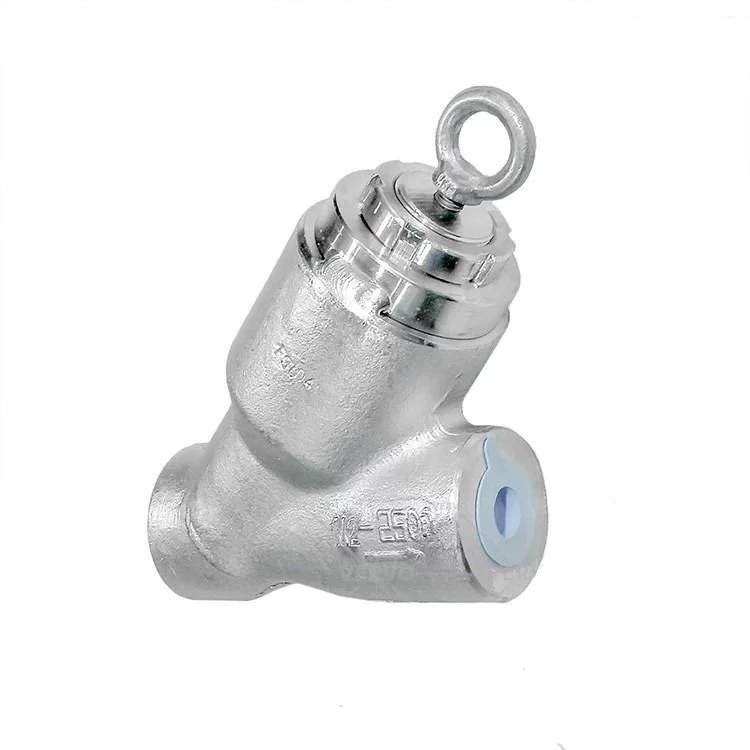

ASTM A182 F304 Piston Check Valve, Y Pattern, 1 IN, 2500 LB

ASTM A182 F304 Piston Check Valve, Y Pattern, 1 IN, 2500 LB

Key Specifications / Features

Model No.: WV-231221-FCV-04 Hits: 1

Explore advanced fluid control solutions with our Piston Y Pattern Check Valve, proudly manufactured in our state-of-the-art factory in China. Crafted to adhere to API 602 and BS 5352 standards, this valve is constructed from high-quality ASTM A182 F304 stainless steel, ensuring top-notch performance. Designed for high-pressure applications, this 1-inch valve operates seamlessly in Class 2500 LB and PN420 environments.

Request a quote

Detail Information

Design Standard: API 602, BS 5352
Body Material: ASTM A182 F304
Nominal Diameter: DN25, 25 MM, 1 INCH
Pressure: Class 2500 LB, PN420
End Connection: FNPT
Face To Face: Factory STD
Test And Inspection: API 598
Feature: Y Pattern Check Valve Stainless Steel 304, Y Pattern Check Valve Dn25, PSC Check Valve

Features and Benefits

● proven pressure seal design.
● Low pressure drop.
● Excellent resistance to thermal changes.
● The forged bonnet ring is centered by the body bore and provides a perfect sealing surface for the pressure seal gasket.
● Quick and easy repair in the line.
● Seat integrally CoCR alloy providing maximum resistance to wear, erosion and distortion due to high temperature changes and piping loads.
● Equalizer piping for safe operation

Size range(s): NPS 2-1/2 - 24 (DN 65 - 600)
Pressure rating: ASME Class 900 - 2500 LB
Standard connections: Socket weld, Butt weld
