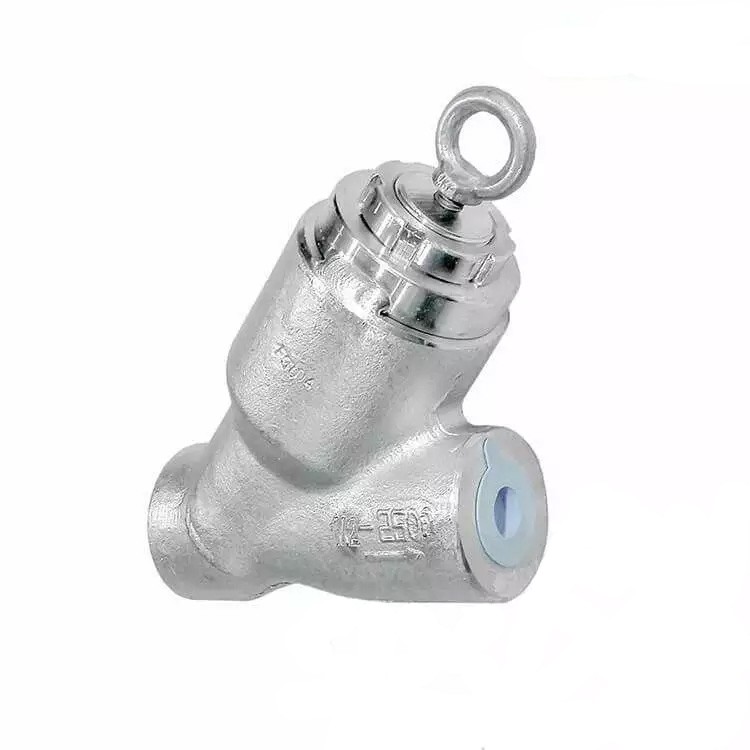

Y Type Check Valve, ASTM A182 F304, API 602, 1 Inch, 2500 LB
Key Specifications / Features
Model No.: WV-231227-FCV-07 Hits: 0
Introducing our Piston Y Pattern Check Valve, meticulously fabricated to the highest standards of excellence. Crafted from high-quality Stainless Steel ASTM A182 F304, this 1-inch valve is engineered for durability and precision. With an impressive Class 2500 LB rating and DN25 specifications, it guarantees optimal performance in critical fluid control applications. The PN420 rating and FNPT End design further enhance its adaptability and ease of installation.
Request a quoteTags:
Detail Information
Design Standard: API 602, BS 5352
Body Material: ASTM A182 F304
Nominal Diameter: DN25, 25 MM, 1 INCH
Pressure: Class 2500 LB
End Connection: FNPT
Face To Face: Factory STD
Test And Inspection: API 598
Feature: Stainless Steel 304, PSC Check Valve
Features and Benefits
DESIGN FEATURES:
● proven pressure seal design.
● Low-pressure drop.
● Excellent resistance to thermal changes.
● Forged bonnet ring is centered by the body bore and provides the perfect sealing surface for the pressure seal gasket.
● Quick and easy repair in the line.
● Seat integrally CoCR alloy providing maximum resistance to wear, erosion and distortion due to high-temperature changes and piping loads.
● Equalizer piping for safe operation
Size range (s): NPS 2-1/2 - 24 Inch (DN65 - DN600)
Pressure rating: ASME Class 900 - 2500 LB
Standard connections: Socket weld, Butt weld
Body Material: ASTM A182 F304
Nominal Diameter: DN25, 25 MM, 1 INCH
Pressure: Class 2500 LB
End Connection: FNPT
Face To Face: Factory STD
Test And Inspection: API 598
Feature: Stainless Steel 304, PSC Check Valve
Features and Benefits
DESIGN FEATURES:
● proven pressure seal design.
● Low-pressure drop.
● Excellent resistance to thermal changes.
● Forged bonnet ring is centered by the body bore and provides the perfect sealing surface for the pressure seal gasket.
● Quick and easy repair in the line.
● Seat integrally CoCR alloy providing maximum resistance to wear, erosion and distortion due to high-temperature changes and piping loads.
● Equalizer piping for safe operation
Size range (s): NPS 2-1/2 - 24 Inch (DN65 - DN600)
Pressure rating: ASME Class 900 - 2500 LB
Standard connections: Socket weld, Butt weld
