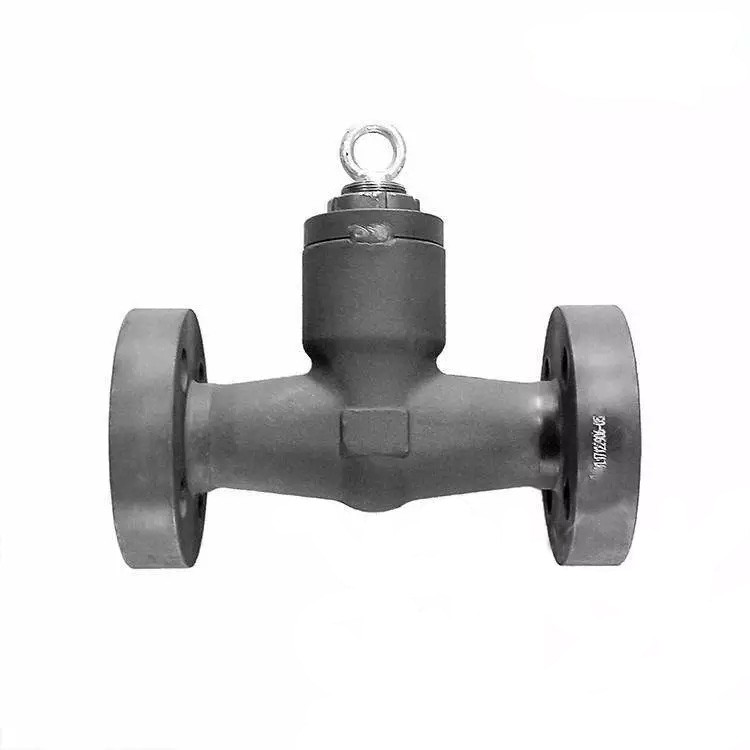

Pressure Seal Bonnet Check Valve, ASTM A105N, 1 IN, 2500 LB

Pressure Seal Bonnet Check Valve, ASTM A105N, 1 IN, 2500 LB

Key Specifications / Features

Model No.: WV-231221-PSB-01 Hits: 2

Discover excellence in fluid control with our Pressure Seal Bonnet Check Valve, expertly manufactured to meet the highest industry standards. Crafted from Forged Steel ASTM A105N, this valve complies with API 602, BS 5352, and ASME B16.34, ensuring top-notch quality and precision. Operating seamlessly in Class 2500 LB and PN420 environments, this 1-inch check valve is designed for versatility. The RTJ Flanged End adds to its secure connections and efficient performance.

Request a quote

Detail Information

Detail Infomation
Design Standard: API 602, BS 5352, ASME B16.34
Body Material: Carbon Steel ASTM A105N
Nominal Diameter: 1 Inch, DN25
Pressure: Class 2500 LB
End ConnectiSWon: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Flanged Pressure Seal Check Valve, 25mm Pressure Seal Check Valve, piston lift type check valve

Applicable Standard

Design Standard: API 602, ASME B16.34, BS 5352
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Buttwelding Ends: ASME B16.25, DIN 3239
Socket Welded Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Inspection and Test: API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
