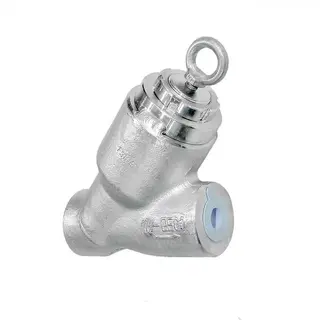

API 602 Check Valve, ASTM A182 F304, 2 Inch, Class 2500 LB

API 602 Check Valve, ASTM A182 F304, 2 Inch, Class 2500 LB

Key Specifications / Features

Model No.: WV-231221-FCV-11 Hits: 0

Explore advanced fluid control solutions with our meticulously crafted Check Valve. Designed in accordance with API 602 and BS 5352 standards, this valve features a robust Stainless Steel ASTM A182 F304 valve body, ensuring durability and reliability. The option for welded or RTJ flange ends ensures flexibility in installation, while maintaining secure connections.

Request a quote

Detail Information

Design Standard: API 602, BS 5352
Body Material: ASTM A182 F304
Nominal Diameter: 2 Inch, DN50
Pressure: Class 2500 LB
End Connection: WELDING FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Forged Steel Check Valve, Forged Steel Check Valve, RTJ check valve
Item Stainless steel Check Valve
Type Piston Check Valve
Certification ISO 9001, ISO 14001, ISO 18001, CE, TS, API
Port Size 2 Inch, DN50
Pressure 2500 LB
Temperature -29 - 300℃
Connection form Welded RTJ Flange
Body material Carbon steel ASTM A182 F316
Feature Easy disassembly and assembly
