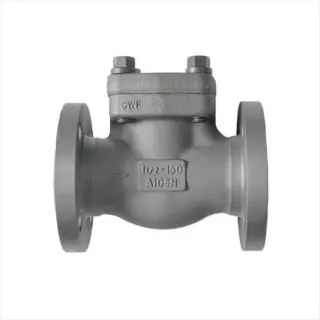

ASTM A105N Lift Check Valve, Bolted Bonnet, 1 Inch, 150 LB
Key Specifications / Features
Model No.: WV-231227-FCV-04 Hits: 19
Welcome to our cutting-edge Bolted Bonnet Check Valve Plant, where precision engineering meets industry excellence. Our 1-inch valve, crafted from robust Carbon Steel ASTM A105N, is designed to meet and exceed the stringent standards set by API 602. With a Class 150 LB rating, this valve ensures reliable performance in critical fluid control systems.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Lift check valve, bolted bonnet, raised flanged, integral seat.
Design: API 602.
Body: ASTM A105N
Nominal size: 1 Inch.
Nominal class: 150 LB.
End Connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 3 Inch (DN15 - DN80).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Lift check valve, bolted bonnet, raised flanged, integral seat.
Design: API 602.
Body: ASTM A105N
Nominal size: 1 Inch.
Nominal class: 150 LB.
End Connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 3 Inch (DN15 - DN80).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Lift check valve. |
| Nominal diameter | 1/2 Inch - 3 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 602. |
| Face to face | ASME B16.10. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | Block reverse flows |
