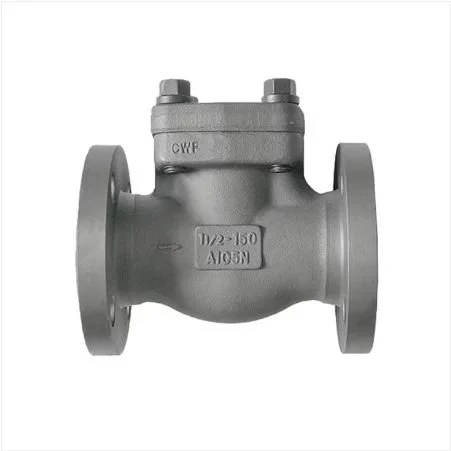

API 602 Lift Check Valve, ASTM A105N, 1-1/2 Inch, 150 LB, RF

API 602 Lift Check Valve, ASTM A105N, 1-1/2 Inch, 150 LB, RF

Key Specifications / Features

Model No.: WV-231221-FCV-06 Hits: 1

Explore superior fluid control solutions with our API 602 Lift Check Valve, expertly supplied to meet the highest industry standards. Crafted with precision, this 1-1/2 inch valve operates seamlessly in Class 150 LB environments. Constructed from robust Carbon Steel ASTM A105N, it ensures durability and reliable performance. The Bolted Bonnet design enhances security, while the Integral Seat provides optimal sealing.

Request a quote

Detail Information

Valve description:
Lift check valve, bolted bonnet, Raised flange, integral seat.
Design: API 602.
Body: ASTM A105N
Nominal size: 1-1/2 Inch.
Nominal class: 150 LB.
End Connection: flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Butt Welding, flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics
Product Lift check valve.
Nominal diameter 1/2 Inch - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Carbon Steel.
Design standard API 602.
Face to face ASME B16.10.
Connection end Butt Welding, flange.
Test standard API 598.
Package Plywood
Application  water, oil and gas.
Certificate CE, TUV, ISO9001, ISO14001
