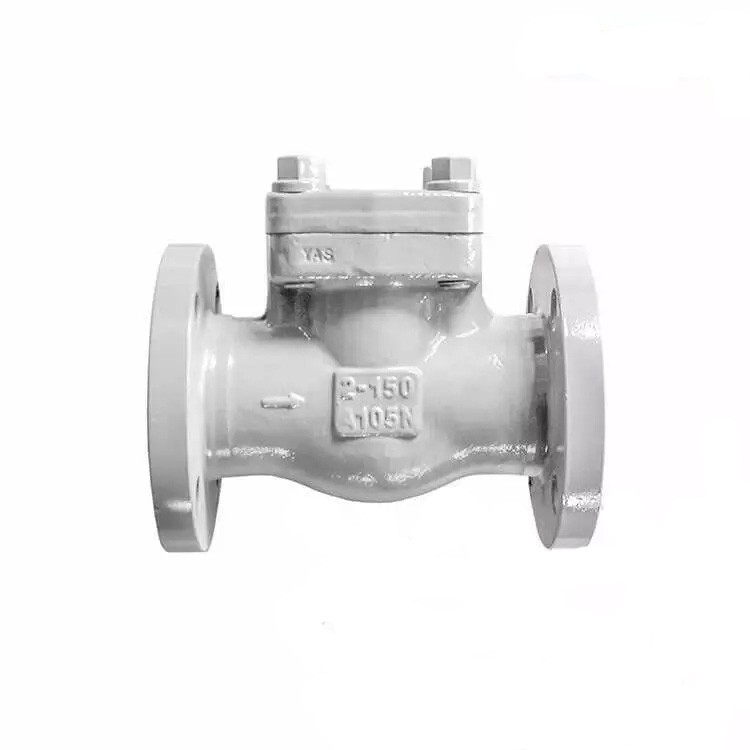

ASTM A105N Swing Check Valve, BS 5352, 2 Inch, 150 LB, RF
Key Specifications / Features
Model No.: WV-231227-ASCV-05 Hits: 39
As a leading provider of ASTM A105N Swing Check Valves, we take pride in delivering excellence and reliability for your fluid control needs. Our 2-inch valve, compliant with API 602 and BS 5352 standards, ensures top-notch performance in a variety of applications. With a Class 150 LB rating and PN20 compatibility, this valve is designed for optimal functionality and versatility.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: API 602, BS 5352
Body Material: ASTM A105N
Nominal Diameter: 2 Inch, DN50
Pressure: Class 150 LB
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
High Light: NRV, Non-Return Valve, No Oil Degreasing Paint Flanged
Forged Steel Check Valve
forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.
PRODUCT RANGE
Size: NPS 1/2 - 4 Inch
Pressure: Class 800-2500 LB
Material: Forged Steel, Alloy 20, Monel, Inconel, Hastelloy
Design & manufacture: API 602, BS 5352, ASME B16.34
Body Material: ASTM A105N
Nominal Diameter: 2 Inch, DN50
Pressure: Class 150 LB
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
High Light: NRV, Non-Return Valve, No Oil Degreasing Paint Flanged
| Item | Carbon steel Check Valve |
| Type | Swing Check Valve |
| Certification | ISO 9001, ISO 14001, ISO 18001, CE, TS, API |
| Port Size | 2 Inch, DN50 |
| Pressure | 150LB |
| Temperature | -29 - 425℃ |
| Connection form | Integral Raised Flange |
| Body material | Carbon steel ASTM A105N |
| Feature | Easy disassembly and assembly |
Forged Steel Check Valve
forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.
PRODUCT RANGE
Size: NPS 1/2 - 4 Inch
Pressure: Class 800-2500 LB
Material: Forged Steel, Alloy 20, Monel, Inconel, Hastelloy
Design & manufacture: API 602, BS 5352, ASME B16.34
