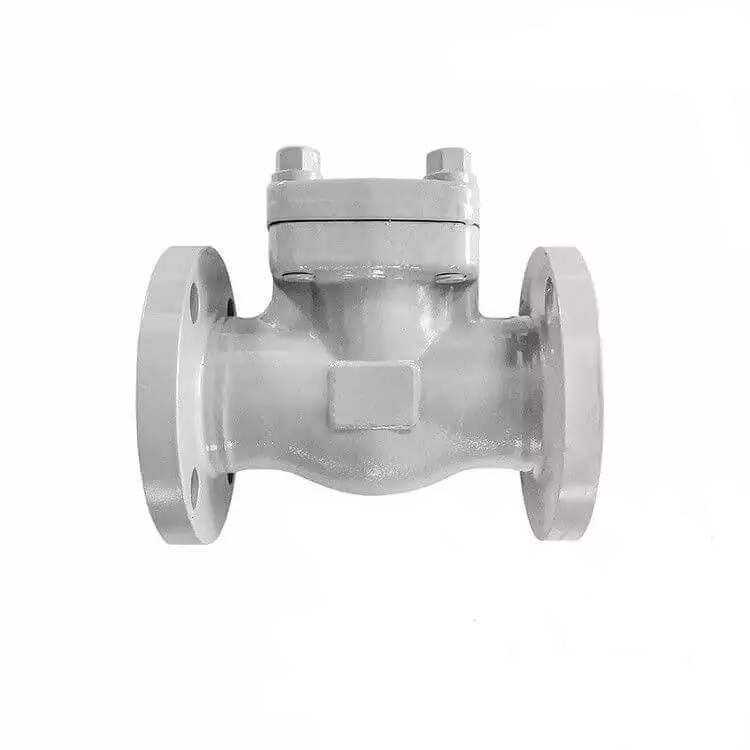

Silence Sping Lift Check Valve, A105N, BS 5352, 2 IN, 150 LB

Silence Sping Lift Check Valve, A105N, BS 5352, 2 IN, 150 LB

Key Specifications / Features

Model No.: WV-231227-FCV-05 Hits: 0

As a premier supplier of Silence Spring Lift Check Valves, we take pride in offering a top-tier solution for your fluid control needs. Our 2-inch valve, distinguished by its vertical piston type design, is expertly manufactured from high-quality ASTM A105N material. Compliant with API 602 and BS 5352 standards, this valve ensures exceptional performance in a variety of applications.

Request a quote

Detail Information

Design Standard: API 602, BS 5352
Body Material: Carbon Steel ASTM A105N
Nominal Diameter: 2 Inch, DN50
Pressure: Class 150 LB
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Item Carbon steel Check Valve
Type Piston Check Valve
Certification ISO9001, ISO14001, ISO18001, CE, TS, API
Port Size 2 Inch, DN50
Pressure 150 LB
Temperature -29 - 425℃
Connection form Integral Raised Flange
Body material Carbon steel ASTM A105N
Feature Easy disassembly and assembly

Forged Steel Check Valve

Forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. Our forged steel check valves are manufactured according to API 602, BS 5352, ASME B16.34 Design.


Size: NPS 1/2 - 4 Inch
Pressure: Class 800 - 2500 LB
Design: API 602, BS 5352, ASME B16.34
