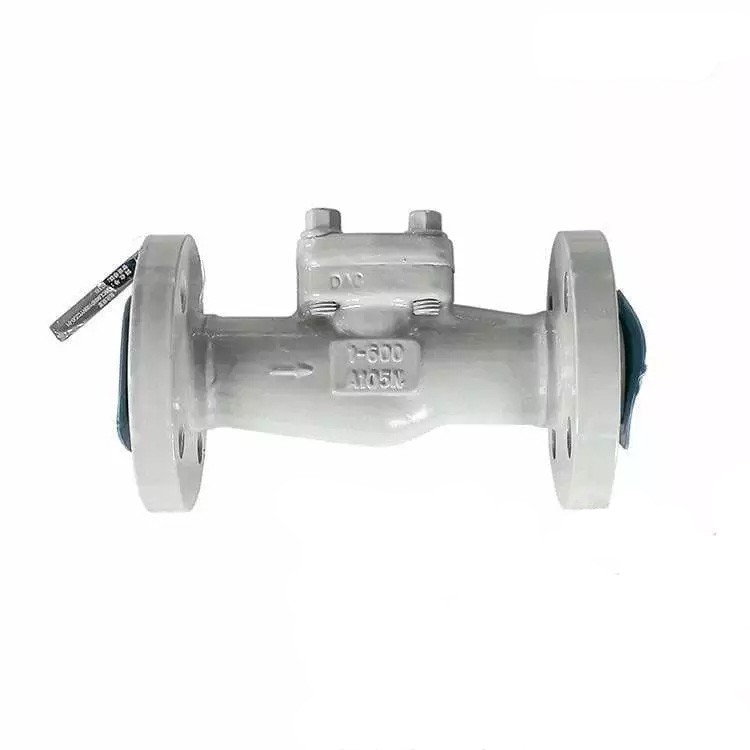

API 602 Lift Check Valve, ASTM A105N, 1 Inch, Class 800 LB
Key Specifications / Features
Model No.: WV-231227-FCV-03
Hits: 95
Welcome to our state-of-the-art Lift Check Valve Factory, where precision meets performance. Crafted with excellence, our forged steel valve is made from high-quality ASTM A105N material, ensuring durability and reliability. With a 1-inch size and an impressive Class 800 LB rating, this valve is designed to meet and exceed industry standards. Compliant with API 602 and BS 5352, it guarantees precision engineering for optimal fluid control.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Design Standard: API 602, BS 5352
Body Material: Forged Steel, Carbon Steel, ASTM A105N
Nominal Diameter: 1 Inch, DN25
Pressure: 800 LB, 2000 PSI
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Product Range
Size: NPS 1/2 - 4 Inch
Pressure: Class 800 - 2500 LB
Material: Forged steel, Alloy 20, Monel, Inconel, Hastelloy
Design: API 602, BS 5352, ASME B16.34
End: SW, NPT, RF or BW
Body Material: Forged Steel, Carbon Steel, ASTM A105N
Nominal Diameter: 1 Inch, DN25
Pressure: 800 LB, 2000 PSI
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
| Item | Carbon steel Check Valve |
| Type | Piston Check Valve |
| Certification | ISO 9001, ISO 14001, ISO 18001, CE, TS, API |
| Port Size | 1 Inch, DN25 |
| Pressure | 600 LB |
| Temperature | -29 - 425℃ |
| Connection form | Integral Raised Flange |
| Body material | Carbon steel ASTM A105N |
| Feature | Easy disassembly and assembly |
Product Range
Size: NPS 1/2 - 4 Inch
Pressure: Class 800 - 2500 LB
Material: Forged steel, Alloy 20, Monel, Inconel, Hastelloy
Design: API 602, BS 5352, ASME B16.34
End: SW, NPT, RF or BW
