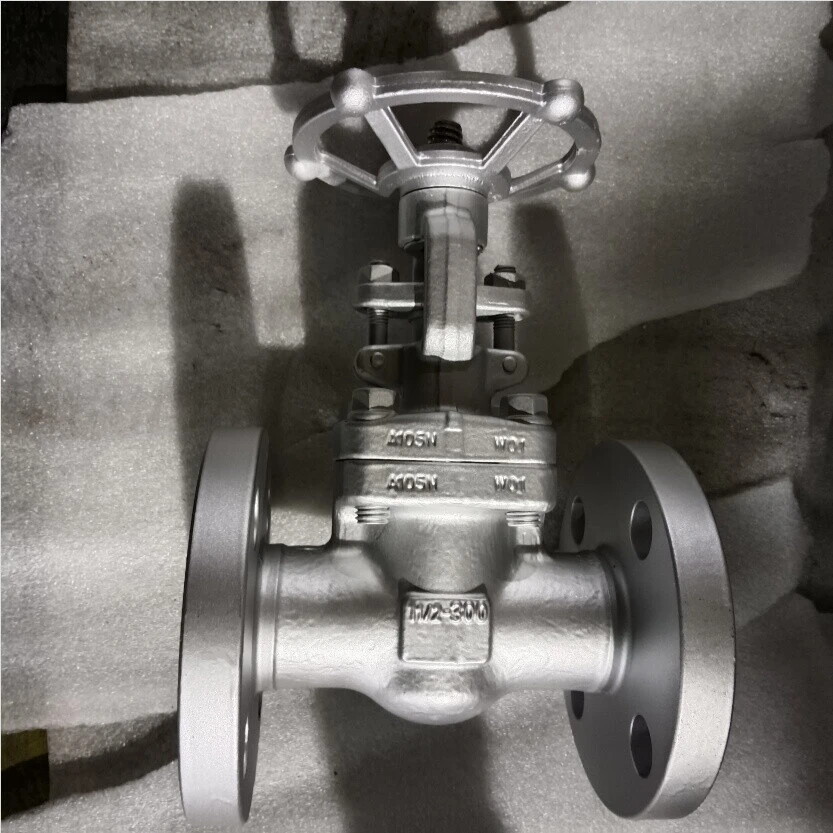

ASTM A105N Gate Valve, Rising Stem, 1-1/2 Inch, 300 LB, BW
Key Specifications / Features
Model No.: WV-240402-AGV-01 Hits: 63
Supplier of rising stem gate valves meeting API 602 standards. Constructed from forged steel ASTM A105N, this valve features a reduced port, 1-1/2 inch size, and Class 300 LB rating. With a bolted bonnet design and butt welded end connections, it offers reliable performance for various industrial applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 602.
Material: ASTM A105N
Size: 1-1/2 Inch, DN40
Pressure: Class 300 LB, PN50
End Connection: BW
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material:CARBON steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150-2500 LB.
Working temperature: -29℃ - +425℃.
Material: ASTM A105N
Size: 1-1/2 Inch, DN40
Pressure: Class 300 LB, PN50
End Connection: BW
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material:CARBON steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150-2500 LB.
Working temperature: -29℃ - +425℃.
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 2 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | 150-800 LB. |
| Material | Carbon steel. |
| Design standard | API 602. |
| Face to face | ASME B16.10. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | Water,steam and air |
| Certificate | CE, ISO 9001, ISO 14001, TS |
