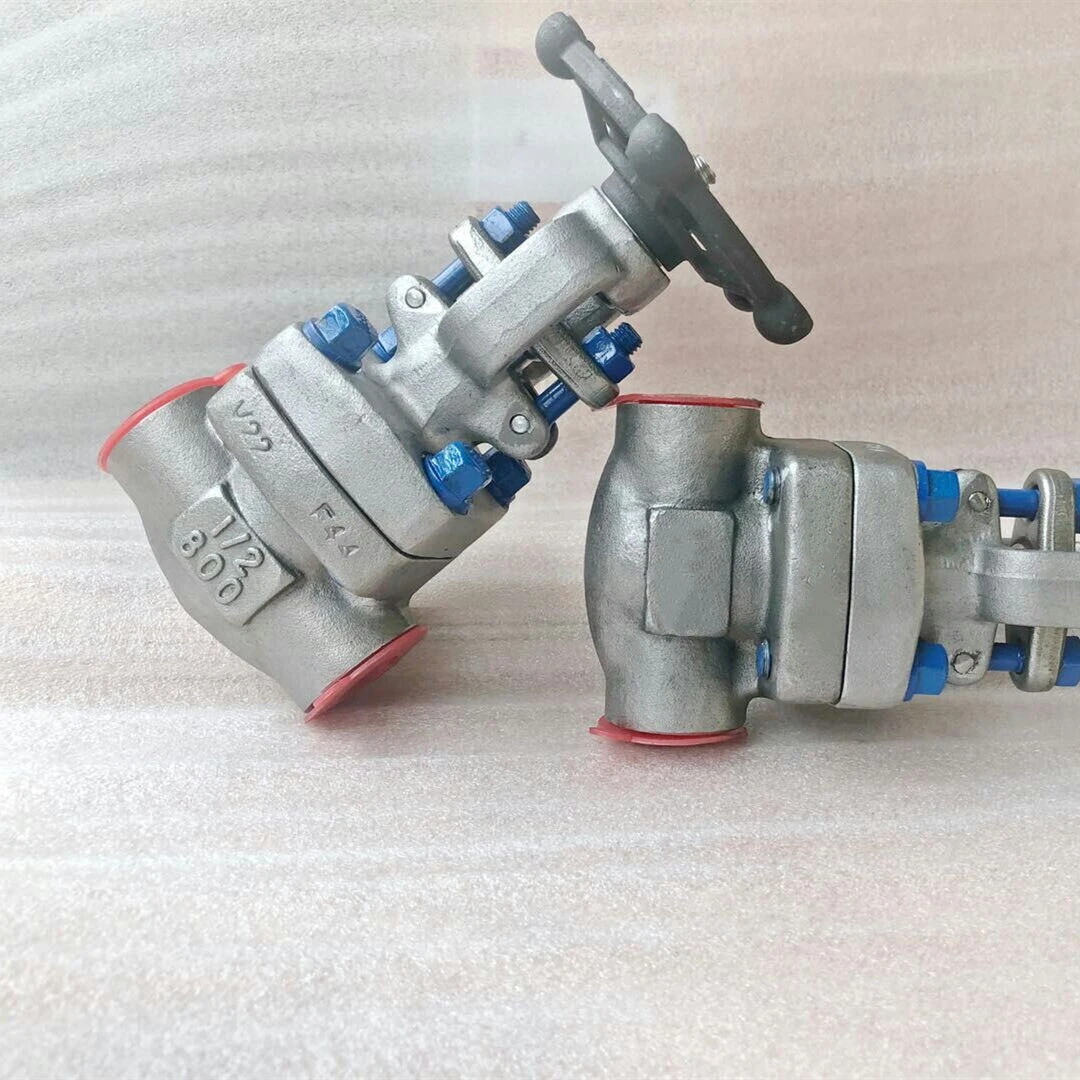

ASTM A182 F44 Gate Valve, Rising Stem, 1/2 Inch, 800 LB, SW
Key Specifications / Features
Model No.: WV-240323-FGV-03 Hits: 1
Introduce our Rising Stem Gate Valve Plant in China, offering high-quality valves manufactured to API 602 standards. Crafted from forged ASTM A182 F44 material, these valves feature a 1/2 inch size and Class 800 LB rating. With a reduced bore design, OS & Y configuration, and socket weld end connections, they ensure reliable performance in various industrial applications.
Request a quoteTags:
Detail Information
Design: API 602.
Material: ASTM A182 F44
Size: 1/2 Inch, DN15
Pressure: Class 800 LB, PN130
Face to face: MFG'S.
Test and inspection: API 598.
End Connection: SW.
Product Range:
Body material: Stainless steel.
Size: 1/2 - 2 Inch, DN15 - DN800
Pressure range: PN16 - PN420, 150-2500 LB
End connection: SW, BW, Flanged.
Working temperature: -29℃ - +300℃.
Material: ASTM A182 F44
Size: 1/2 Inch, DN15
Pressure: Class 800 LB, PN130
Face to face: MFG'S.
Test and inspection: API 598.
End Connection: SW.
Product Range:
Body material: Stainless steel.
Size: 1/2 - 2 Inch, DN15 - DN800
Pressure range: PN16 - PN420, 150-2500 LB
End connection: SW, BW, Flanged.
Working temperature: -29℃ - +300℃.
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 2 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | PN16 - PN420. |
| Material | Stainless steel. |
| Design standard | API 602. |
| Face to face | MFG'S. |
| Connection end | SW, BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | Water, steam and air |
