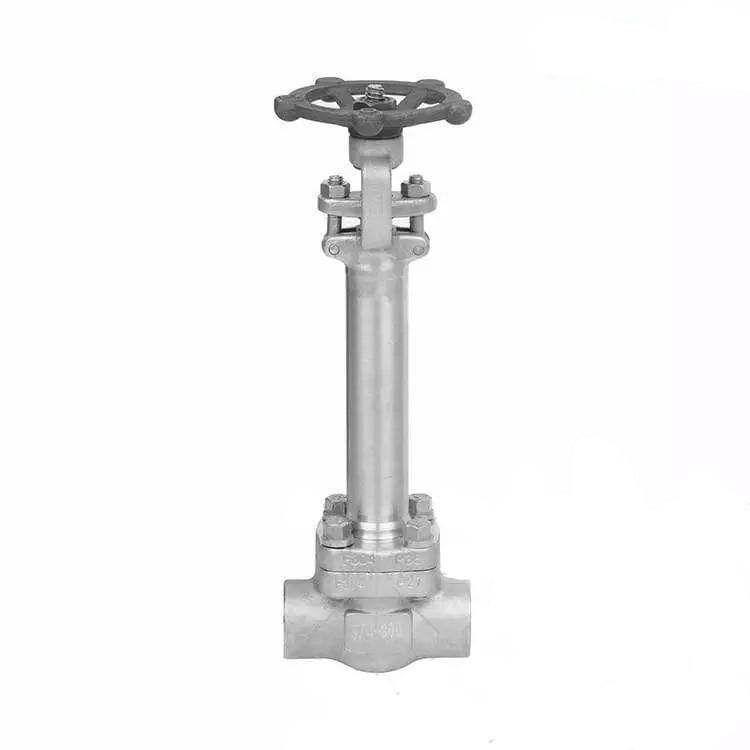

Cryogenic Gate Valve, ASTM A182 F304, PSB, 3/4 Inch, 300 LB
Key Specifications / Features
Model No.: WV-231225-AGV-13 Hits: 0
Welcome to our Cryogenic Gate Valve Supplier, specializing in precision-engineered valves that meet the stringent requirements of API 602 and BS 5352. Our valve is meticulously crafted from Forged Steel ASTM A182 F304, ensuring durability and reliability. With a compact 3/4-inch size (DN20) and a robust 300 LB (PN50) rating, our Cryogenic Gate Valve is designed for optimal performance in demanding applications.
Request a quoteTags:
Detail Information
Name: Forged Steel Cryogenic Gate Valve
Media: Oli, Gas, Water
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Size: 3/4 Inch, DN20
Pressure: Class 300 LB, PN50
Material: ASTM A182 F304
Temperature Of Media: -54℃ To 232℃
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Cryogenic Pressure Seal, Pressure Seal Gate Valve, Extension Stem gate Valve
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Design: API 602, ISO 15761, ASME B16.34
Face-to-face: VERVO'STD, ASME B16.10
End Dimension: ASME B1.20.1 (NPT), ASME B16.11 (SW), ASME B16.25 (BW), ASME B16.5 (RF, RTJ)
Test & Inspection: API 598
Typical Materials: ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L
Stem: ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L
Media: Oli, Gas, Water
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Size: 3/4 Inch, DN20
Pressure: Class 300 LB, PN50
Material: ASTM A182 F304
Temperature Of Media: -54℃ To 232℃
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Cryogenic Pressure Seal, Pressure Seal Gate Valve, Extension Stem gate Valve
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Design: API 602, ISO 15761, ASME B16.34
Face-to-face: VERVO'STD, ASME B16.10
End Dimension: ASME B1.20.1 (NPT), ASME B16.11 (SW), ASME B16.25 (BW), ASME B16.5 (RF, RTJ)
Test & Inspection: API 598
Typical Materials: ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L
Stem: ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L
