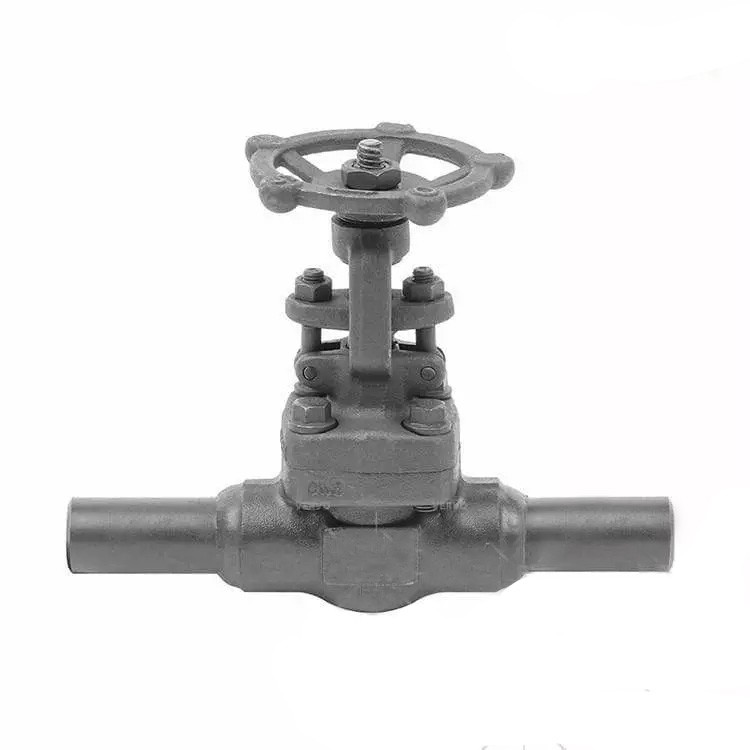

Extension Stem Gate Valve, ASTM A182 F316, 1 Inch, 2500 LB
Key Specifications / Features
Model No.: WV-231228-AGV-20 Hits: 28
As a leading Extension Stem Gate Valve Fabricator, we take pride in presenting our precision-engineered solution for fluid control. Crafted from high-quality ASTM A182 F316 material, this 1-inch valve is designed to meet the demanding requirements of various industries. With a robust 2500 LB rating and DN25 specifications, our gate valve ensures optimal performance in a wide range of applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Name: Forged Steel Extend Body Gate Valve
Size: 3/4 Inch, DN20
Pressure: Class 800 LB
Material: ASTM A105N
Media: Oli, Gas, Water
Standard: API 602, BS 5352
Temperature Of Media: -54℃ To 232℃
Forged Low-Temperature Carbon Steel Gate Valve-Extended Body
1. Forged Carbon Steel Gate Valve
2. Class 800, 900, 1500, 2500 LB
3. Reduced Port, Full Port
4. ASME B16.34
5. Maximum Pressure 1975 PSI
6. Maximum Temperature 850
7. Bolted Bonnet
8. API 602, API 598
9. NACE MR0175
10. Size: 1/2 - 4 Inch
Size: 3/4 Inch, DN20
Pressure: Class 800 LB
Material: ASTM A105N
Media: Oli, Gas, Water
Standard: API 602, BS 5352
Temperature Of Media: -54℃ To 232℃
| Item | High-Pressure Pressure Seal Bonnet Globe Valve 2500LB |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Connection form | EXTENDED BODY, WITH NIPPLE END |
| Body material | Forged steel ASTM A105N |
| Purpose | Suitable for Various industries |
| Temperature | -29-425 |
Forged Low-Temperature Carbon Steel Gate Valve-Extended Body
1. Forged Carbon Steel Gate Valve
2. Class 800, 900, 1500, 2500 LB
3. Reduced Port, Full Port
4. ASME B16.34
5. Maximum Pressure 1975 PSI
6. Maximum Temperature 850
7. Bolted Bonnet
8. API 602, API 598
9. NACE MR0175
10. Size: 1/2 - 4 Inch
