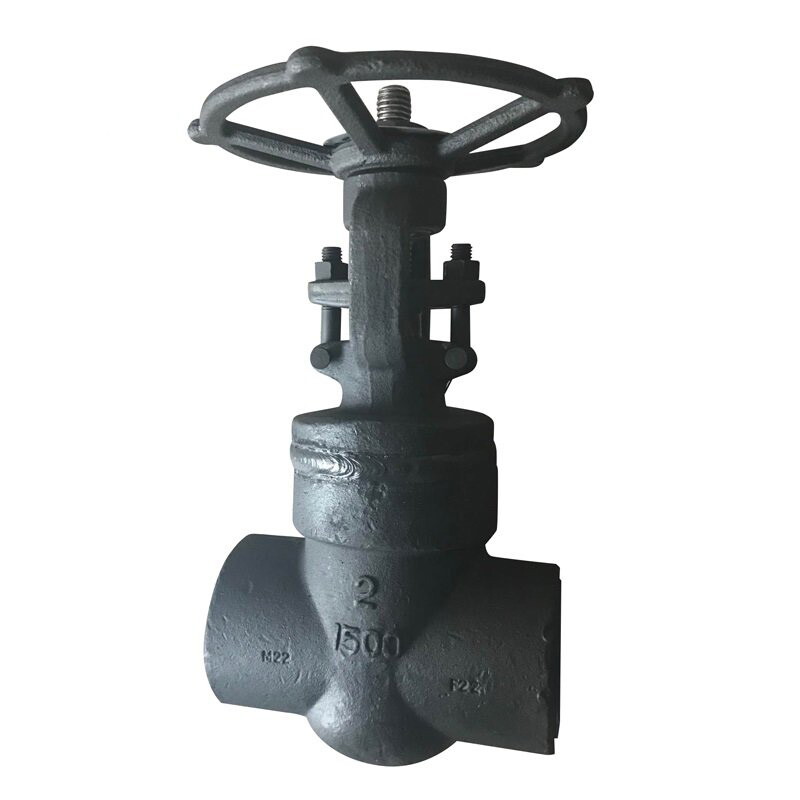

API 602 Welded Bonnet Gate Valve, ASTM A105N, 2 Inch, 1500 LB
Key Specifications / Features
Model No.: WV-240227-FGV-01 Hits: 0
Discover top-quality welded bonnet gate valves from our provider. Crafted from forged steel ASTM A105N and meeting API 602 standards, these valves boast a 2-inch size, Class 1500 LB rating, DN50, and PN250. Operated via a handwheel and featuring an outside screw and yoke design, they ensure reliable performance in various applications.
Request a quoteTags:
Detail Information
Standard: API 602
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: Socket Weld
Operating: Hand Wheel
Port: Reduce Port
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +425ºC
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: Socket Weld
Operating: Hand Wheel
Port: Reduce Port
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +425ºC
