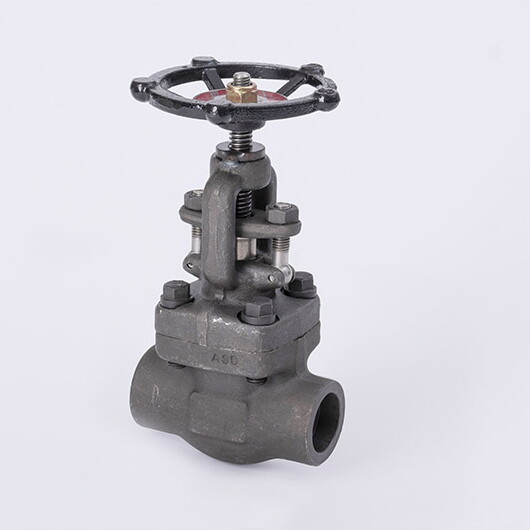

ASME B16.34 Gate Valve, ASTM A350 LF6 CL 2, 4500 LB, 3/4 Inch
Key Specifications / Features
Model No.: WV-240219-FGV-02 Hits: 8
Manufacturer of forged steel gate valves in China, offering 3/4 inch valves with Class 4500 LB rating. Made from ASTM A350 LF6 Class 2 material, DN20 size, PN760 pressure rating, conforming to ASME B16.34 standards. Features include ASME B16.10 face-to-face dimensions and butt weld (BW) end connections.
Request a quoteTags:
Detail Information
Standard: ASME B16.34, API 602
Size: 3/4 Inch, DN20
Pressure: Class 4500 LB, PN760
Material: ASTM A350 LF6 Class 2
Temperature Range: -196℃ - +650℃
Face to Face: ASME B16.10
Test Standard: API 598
End Connection: BW
Size: 3/4 Inch, DN20
Pressure: Class 4500 LB, PN760
Material: ASTM A350 LF6 Class 2
Temperature Range: -196℃ - +650℃
Face to Face: ASME B16.10
Test Standard: API 598
End Connection: BW
