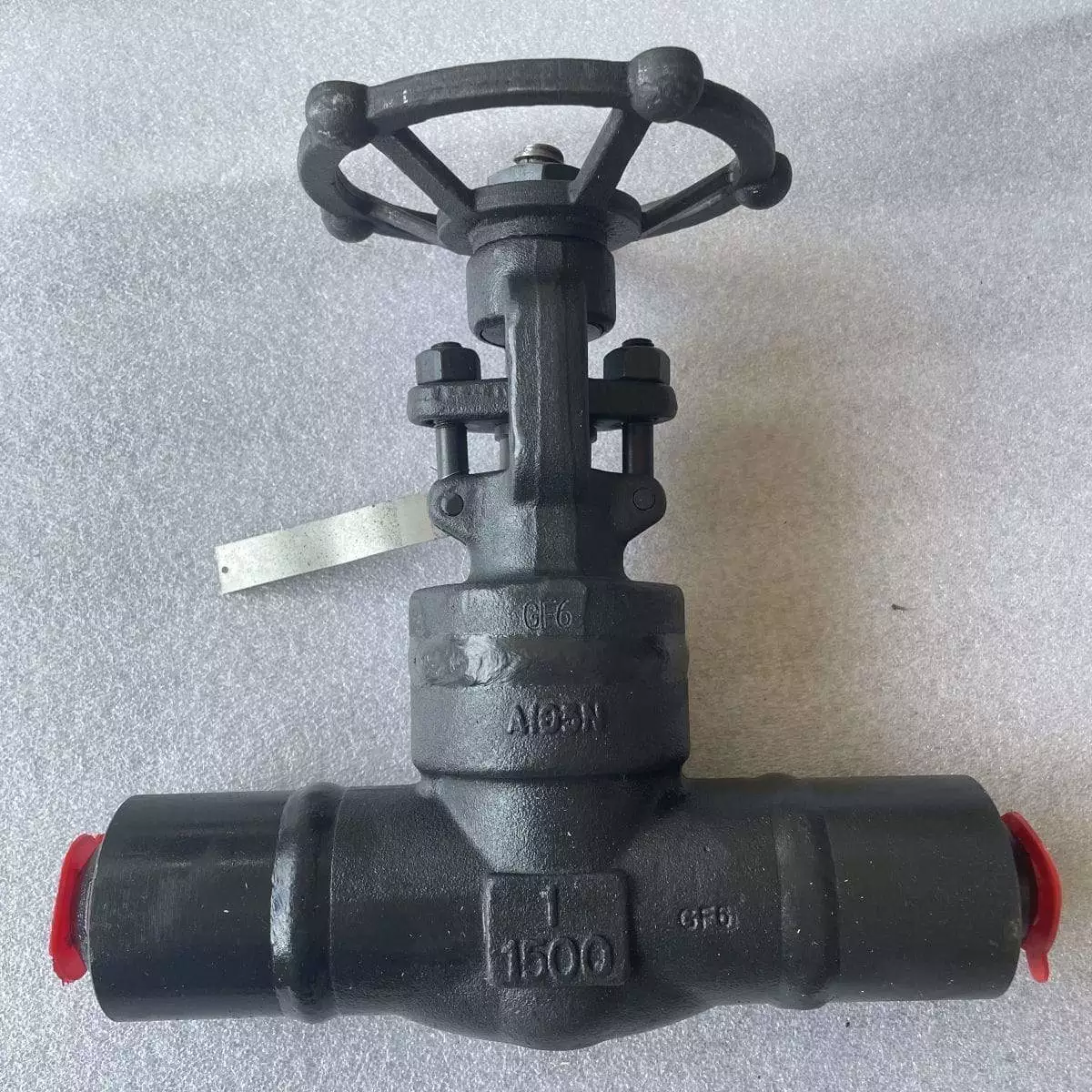

ASTM A105N Gate Valve, Welded Bonnet, 1 Inch, Class 1500 LB
Key Specifications / Features
Model No.: WV-231219-AGV-05 Hits: 49
As a dedicated Welded Bonnet Gate Valve provider, we offer precision-engineered valves designed for optimal performance. Our 1-inch valves, crafted from high-quality Carbon Steel ASTM A105N, adhere to API 602 standards and boast a Class 1500 LB rating. With a nominal diameter of DN25 and a PN250 designation, these valves are tailored for excellence. Featuring a secure Butt Weld End and nipples on both sides, our valves ensure reliability in a variety of industrial applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Gate valve, carbon steel, welded bonnet.Design: API 602.
Body: ASTM A105N
Nominal size: 1 Inch.
Nominal class: 1500 LB.
End Connection: BW.
Face to face: MFG'S.
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 3 Inch (DN15 - DN80).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 3 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon steel. |
| Design standard | API 602. |
| Face to face | MFG'S. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
