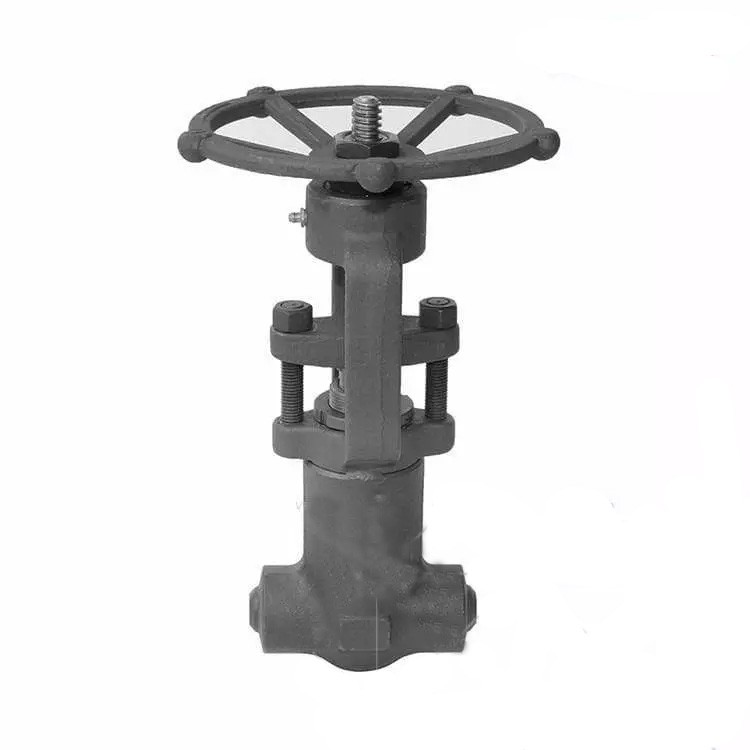

PSB Gate Valve, Solid Wedge, ASTM A105N, 3/4 Inch, 1500 LB
Key Specifications / Features
Model No.: WV-231225-PSBGV-01 Hits: 3
Discover the excellence of our Pressure Sealing Bonnet Gate Valve, proudly provided by our reputable manufacturing facility. Engineered with a Solid Wedge design and constructed from high-quality Forged Steel ASTM A105N, this valve ensures robust performance in demanding environments. With a 3/4-inch size (DN20) and a formidable Class 1500 LB (PN250) rating, it is ideal for applications requiring superior pressure sealing.
Request a quoteTags:
Detail Information
Name: Forged Steel Pressure Seal Bonnet Gate Valve
Size: 3/4 Inch, DN20
Pressure: Class 1500 LB, PN250
Material: ASTM A105N
Media: Oli, Gas, Water
Temperature Of Media: -54℃ - 232℃
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Size: 3/4 Inch, DN20
Pressure: Class 1500 LB, PN250
Material: ASTM A105N
Media: Oli, Gas, Water
Temperature Of Media: -54℃ - 232℃
| Item | High Pressure Pressure Seal Bonnet Gate Valve 1500LB |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Connection form | BUTT WELDING |
| Body material | Forged steel ASTM A105N |
| Purpose | Sutiable for Various Industrise |
| Temperature | -29℃-425℃ |
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
