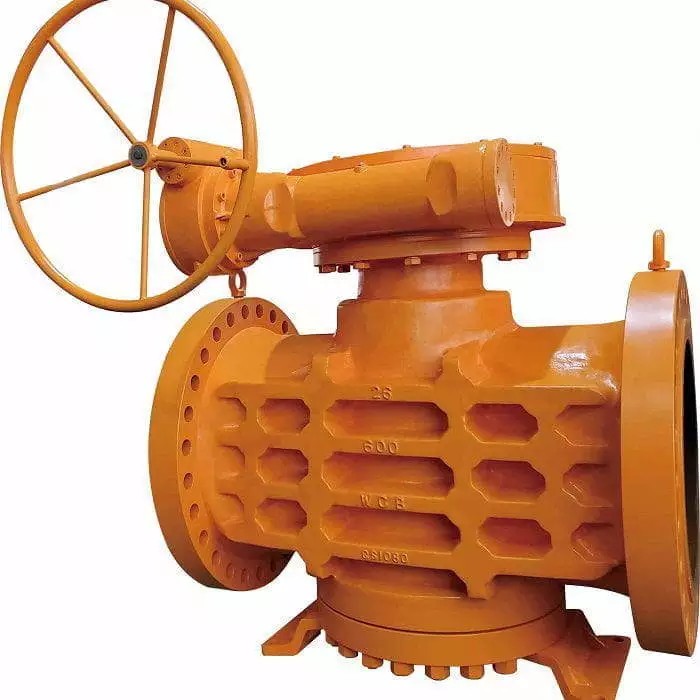

API 599 Lubricated Plug Valve, ASTM A216 WCB, 26 IN, 600 LB
Key Specifications / Features
Model No.: WV-240105-PBPV-01 Hits: 12
As a premier provider, we present the ASTM A216 WCB Lubricated Plug Valve, adhering to API 599 and API 6D standards. With an impressive 26-inch size, Class 600 LB rating, and DN650 specifications, it ensures efficient fluid control. The pressure-balanced design and gearbox operation enhance reliability, while the RF end simplifies installation.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 6D, API 599
Body: ASTM A216 WCB
Nominal size: 26 Inch.
Nominal class: 600 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 -2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
Body: ASTM A216 WCB
Nominal size: 26 Inch.
Nominal class: 600 LB.
End Connection: RF
Face to Face dimension: ASME B16.10.
Test and inspection: API 598.
Operation: Gear box
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 40 Inch (DN15 - DN1000).
End connection: RF, RTJ, BW
Pressure range: Class 150 -2500 LB.
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | Plug valve. |
| Nominal diameter | 1/2 Inch - 40 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API6D,API599 |
| Connection end | Flange. |
| Test standard | API598. |
| Package | Plywood |
| Operation | Lever, Gear box |
