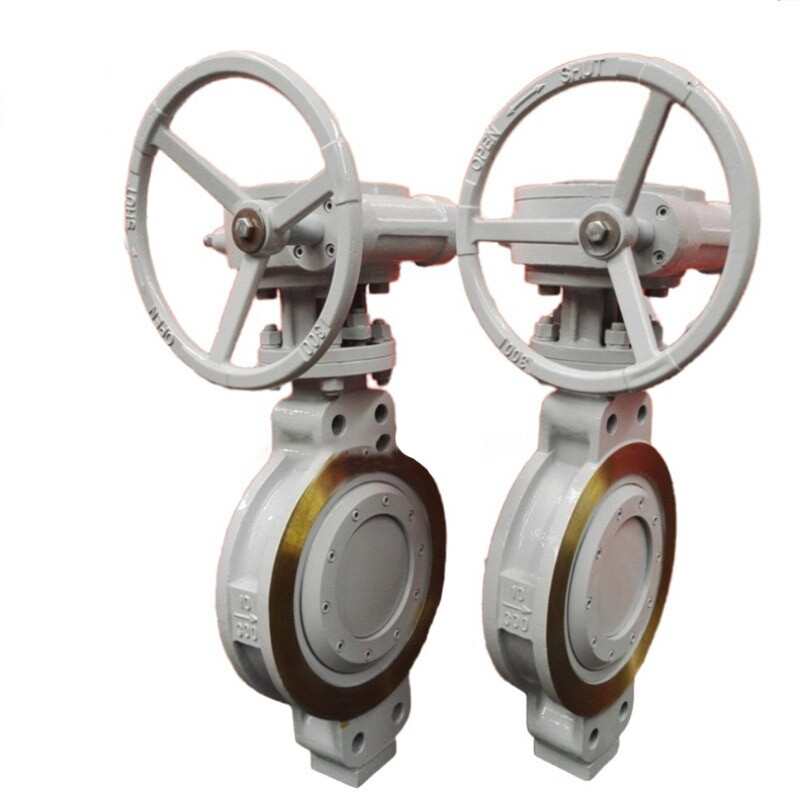

Triple Eccentric Butterfly Valve, API 609, WCB, 10 IN, CL 300
Key Specifications / Features
Model No.: WV-240222-CBFV-03 Hits: 13
As a leading fabricator of triple eccentric butterfly valves, we specialize in crafting high-performance valves tailored to meet industry demands. Our 10-inch valves are meticulously engineered from ASTM A216 WCB material, ensuring robustness and durability. Designed to withstand Class 300 LB pressure, these valves adhere to API 609 standards, guaranteeing reliability and compliance.
Request a quoteTags
Detail Information
Standard: API 609
Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A351 CF8, etc
Size: 10 Inch, DN250
Pressure: Class 300 LB, PN50
End Connection: Wafer
Operating: Gear Box, Electric actuator, etc
Face to Face: ASME B16.5, ASME B16.47
Test & Inspection: API 598
Seal Structure, Soft Sealing
Working Temperature: -46℃ - +550℃
Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A351 CF8, etc
Size: 10 Inch, DN250
Pressure: Class 300 LB, PN50
End Connection: Wafer
Operating: Gear Box, Electric actuator, etc
Face to Face: ASME B16.5, ASME B16.47
Test & Inspection: API 598
Seal Structure, Soft Sealing
Working Temperature: -46℃ - +550℃
