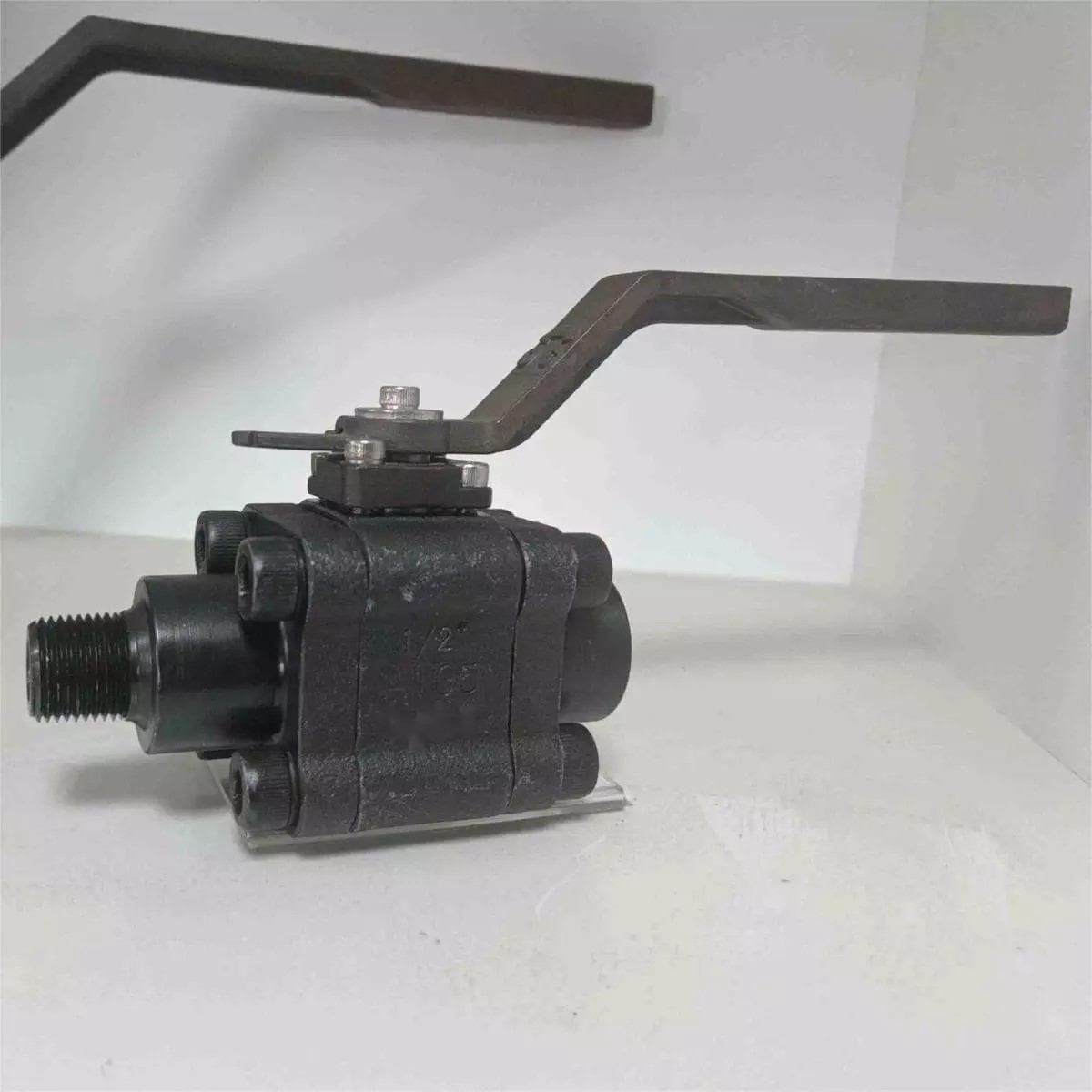

ASTM A105N Ball Valve, Three-Piece, 1/2 Inch, 1500 LB, SW

ASTM A105N Ball Valve, Three-Piece, 1/2 Inch, 1500 LB, SW

Key Specifications / Features

Model No.: WV-231220-FSBV-06 Hits: 2

Welcome to our Carbon Steel ASTM A105N Ball Valve Supplier, where precision and reliability meet. Our three-piece valves, featuring high-quality ASTM A105N material, are designed for optimal performance. With a 1/2 Inch size and Class 1500 LB rating, these ball valves adhere to API 608 standards, ensuring robust performance in various applications. Equipped with a Bolted Bonnet for secure sealing, our valves are designed for DN15 and PN250 specifications.

Request a quote

Detail Information

On this page

Detail Infomation

Valve description:
Ball valve, carbon steel, bolted bonnet, three-pieces
Design: API 608.
Body: A105N
Nominal size: 1/2 Inch.
Nominal class: 1500 LB.
End Connection: NPT*SW.
OPERATION: LEVER
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange, SW, (F)NPT
Pressure range: Class 150 - 2500 LB.
Working temperature: -29℃ - +429℃.

Technical parameters and characteristics
Product Ball valve.
Nominal diameter 1/2 - 32 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Carbon steel.
Design standard API608.
Face to face MFG’S.
OPERATION LEVER, GEAR
Connection end SW, NPT, BW, Flange.
Test standard API 598.
Package Plywood
Application The oil and gas industry
